Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRO WS Z890-ACE SE
Brand Name: Asus
Product Line: Pro
Product Model: WS Z890-ACE SE

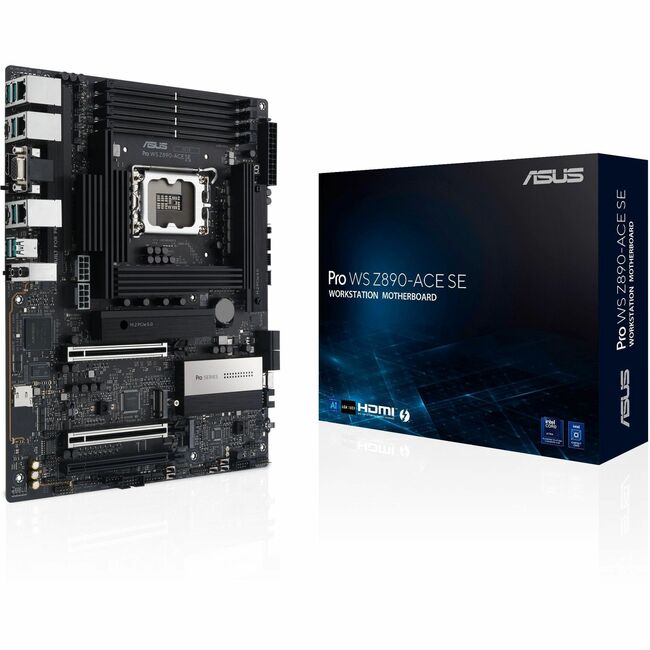

Product Name: Pro WS Z890-ACE SE Workstation Motherboard
Marketing Information:
Intel Z890 LGA1851 ATX workstation motherboard with PCIe®5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
- Ready for advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA1851 socket: Ready for Intel®Core™ Ultra 9, 7, and 5 desktop processors
- Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity:Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
- Exclusive AI and overclocking technologies:AI Overclocking, AI Cooling II, AI Advisor and NPU boost
- DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-Connector
- Server-grade IPMI remote management and onboard BMC:Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Product Type: Workstation Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z890
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 192 GB
Memory Speed Supported: 9066 MHz
Memory Technology: DDR5 SDRAM
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2600
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 8
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 3
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
Miscellaneous
Package Contents:
- Pro WS Z890-ACE SE Workstation Motherboard
- 2 x SATA 6Gb/s cables
- 1 x AMI license sticker
- 1 x I/O shield
- 2 x M.2 Q-Latch packages
- 2 x M.2 rubber packages
- 1 x Q-connector
- 1 x ACC Express activation key card
- 1 x Quick start guide
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
