Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROGSTRIX B850-IGAMINGWIFI
Brand Name: Asus ROG
Product Line: Strix
Product Model: B850-I GAMING WIFI

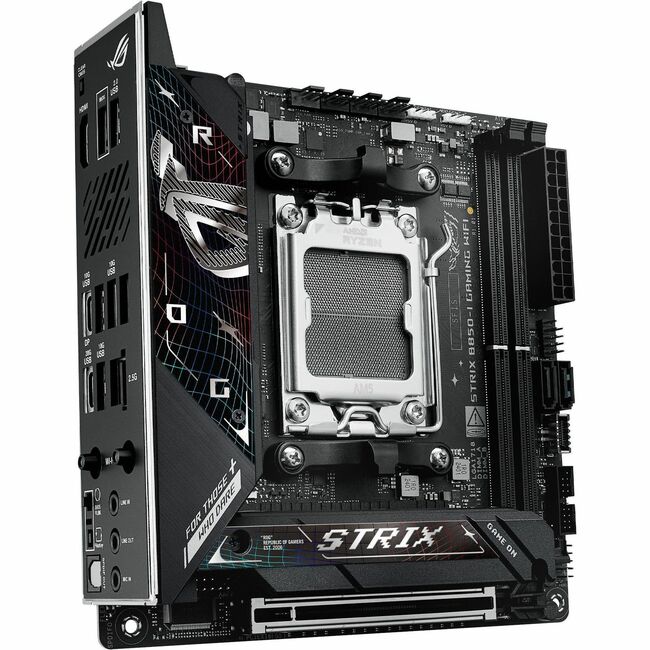

Product Name: Strix B850-I GAMING WIFI Gaming Desktop Motherboard
Marketing Information:
ROG STRIX B850-I GAMING WIFI
AMD B850 Mini-ITX motherboard with 10+2+1 power stages, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C®, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent Control:ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance
- Robust Power Solution: 10+2+1 power solution rated for up to 70A per stage with ProCool power connectors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads
- Latest M.2 Support:Two onboard PCIe®5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
- Abundant Connectivity: USB 20Gbps Type-C®port, USB 10Gbps Type-C®front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel®2.5 Gb Ethernet
- DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, FlexKey button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
- Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
ASUS AI INTELLIGENCE | ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B850
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7Ryzen 9Memory
Number of Memory Slots: 2
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 96 GB
Memory Speed Supported: 8400 MHz
Memory Technology: DDR5 SDRAM
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 8
S/PDIF: Yes
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Miscellaneous
Package Contents:
- Strix B850-I GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 backplate Q-Latch package(s)
- 1 x M.2 Q-Slide package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x M.2 backplate rubber package(s)
- 1 x Quick start guide
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)Restriction of Hazardous Substances (RoHS)Taiwan Restriction of Hazardous Substances (Taiwan RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 3 Year
