Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: DD-EA272Q
Brand Name: Sharp
Product Line: MultiSync
Product Model: DD-EA272Q

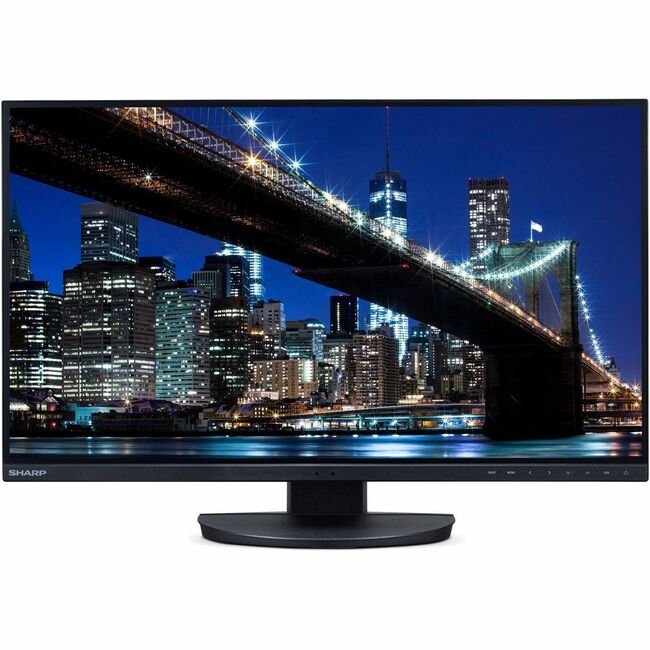

Product Name: MultiSync DD-EA272Q Widescreen LED Monitor
Marketing Information:
The WXHD 27" NEC MultiSync EA272Q is a large workspace for the most demanding applications. The EA272Q is packed with essential connectivity such as USB Type-C, HDMI, LAN (ethernet), DisplayPort and USB 3.1. The LAN connection, coupled with the USB Type-C's powerful 90W charging capability, eliminates the need for expensive docking stations. With just a single cable to connect to a laptop/PC, users will eliminate unnecessary cable clutter and e-waste is minimized. With 3 bezels measuring only 1.0mm each, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort, HDMI and USB-C inputs. The EA272Q includes touch-sensitive On Screen Display controls.
Features
- WQHD (2560x1440) Resolution
- IPS Technology for 178-degree wide viewing angles
- Brightness 350 cd/m2
- Full connectivity, including DisplayPort, HDMI and USB-C inputs
- USB-C input delivers 90W of power as well as video and USB over one cable
- LAN port enables ethernet use for those devices connected to the display with no LAN port
- Touch-sensitive OSD® controls are integrated into the bezel
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
- Certified Low Blue Light and Flicker Free:Height-adjust stand, pivot, tilt and swivel capabilities: ENERGY STAR 8.0 and TCO 8.0
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- 3 Year Waranty
- Touch-sensitive OSD® controls are integrated into the bezel
- 3 year warranty
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 27"
Viewable Screen Size: 27"
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6 ms
Response Time Details: 6 ms Typical
Aspect Ratio: 16:9
Pixel Pitch: 0.23300 mm x 0.23300 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Features: XtraViewSeparate SyncAuto Brightness Control (ABC)Ambient Light SensorEco ModeCarbon Footprint MeterUltraNarrow BorderCarrying HandleOn-screen Display (OSD)Cable ManagementDynamic Visual ModeAccuColorWide Viewing AngleAmbient LightingLow Blue LightDisplay Power Management Signaling (DPMS)Horizontal Frequency: 31.50 kHz to 94 kHz
Vertical Frequency: 48 Hz to 75 Hz
Adjustable Stand: Yes
Stand Adjustments: TiltHeightPivotSwivelVideo
Maximum Resolution: 2560 x 1440
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 350 cd/m²
Color Gamut: 80.8% Adobe RGB77.40% NTSC100% sRGBPixel Per Inch (PPI): 109
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of USB 3.1 Ports: 2
Environmental Conditions
Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Maximum Operating Altitude: 16404.20 ft (5000 m)
Power Description
Standby Power Consumption: 300 mW
Maximum Power Consumption: 27 W
Physical Characteristics
VESA Mount Compatible: Yes
Color Family: Black
Height: 14.25" (361.90 mm)
Width: 24.09" (611.80 mm)
Depth: 2.65" (67.20 mm)
Height with Stand: 20.79" (528 mm)
Width with Stand: 24.09" (611.80 mm)
Depth with Stand: 9.84" (250 mm)
Weight (Approximate): 12.79 lb (5800 g)
Weight with Stand (Approximate): 20.28 lb (9200 g)
Miscellaneous
Package Contents:
- MultiSync DD-EA272Q Widescreen LED Monitor
- Power Code (1.8m)
- USB-C (1.0m)
Application/Usage: Business
Energy Star: Yes
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification: TCO Certified Displays 8.0
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
