Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02918-001
Brand Name: AXIS
Product Model: M3126-LVE

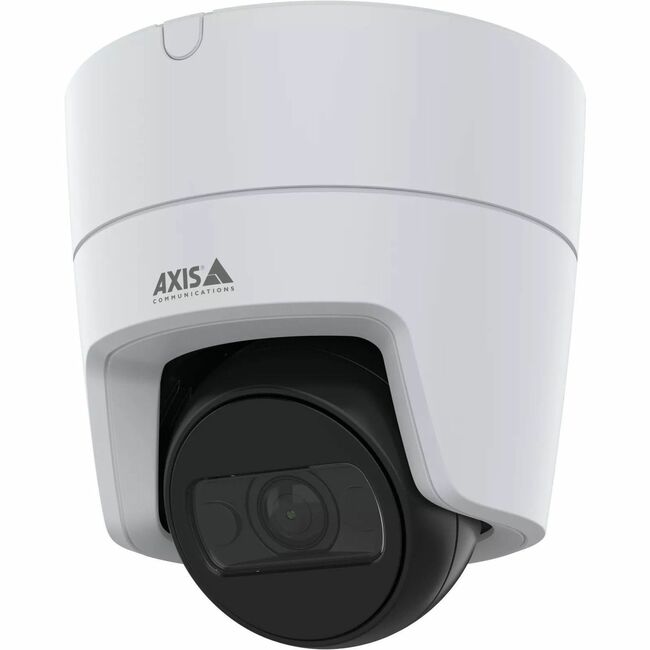

Product Name: M3126-LVE Dome Camera
Marketing Information:
This turret-style, AI-powered dome camera delivers great 4 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.
Great image quality
AXIS M3126-LVE offers great 4 MP resolution with 130° field of view. Built-inOptimizedIRallows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there's no need for extra lighting-you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. AndAxis Lightfindertechnology ensures increased light sensitivity and clear colors in low light.
Powerful with strong security
Including adeep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects like humans and vehicles. This DLPU also delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore,Axis Edge Vault, a hardware-basedcybersecurityplatform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it's available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 65 ft (19.81 m)
Night Vision Type: Infrared
Camera Iris: Fixed
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal field of view: 130°, Vertical field of view: 73°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats: H.265 (MPEG-H Part 2/HEVC) Main ProfileMotion JPEGH.264H.265H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)JPEGZipstreamMaximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 2.4 mm (0.09")
Lens Mount Type: M12-mount
Maximum Aperture: f/2.1
Exposure
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZ
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2TLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1SyslogZeroConfONVIFStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 10.50 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonatePlasticMount Type: Recessed MountWall MountCeiling MountConduit MountPendant MountForm Factor: Dome
Durability: Weather Proof
Weight (Approximate): 13.76 oz (390 g)
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features: Human DetectionVehicle DetectionWide Dynamic RangeBuilt-in IR LEDDay/NightOn Screen Display MenuPrivacy MaskingAudio DetectionVideo Management SystemPVC-freeIndoor/Outdoor: Indoor/Outdoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP66
TAA Compliant: Yes
