General Information

---

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: VX1654
Brand Name: ViewSonic
Product Model: VX1654

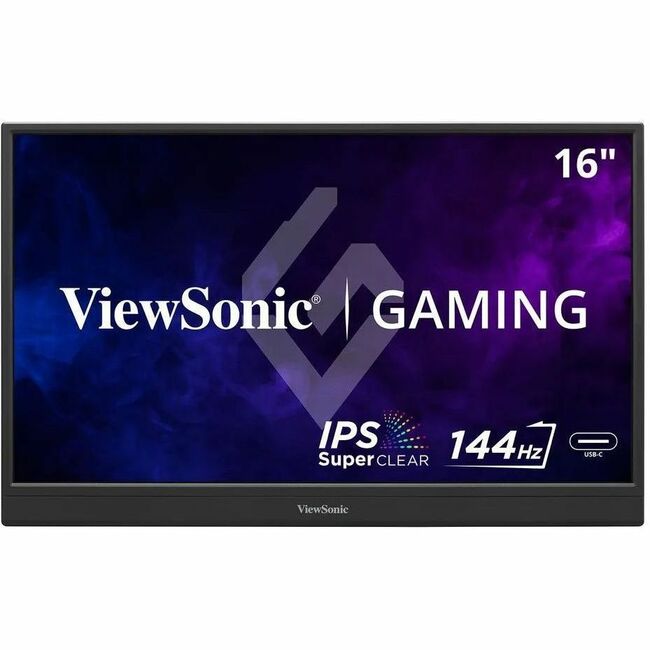

Product Name: 16'' Portable 1080p 144Hz IPS Gaming Monitor with FreeSync and 60W USB-C
Marketing Information: Take portable gaming to the next level with the ViewSonic® VX1654 15.6" portable monitor. Featuring a stunning anti-glare Full HD display, powerful 144Hz refresh rate and AMD FreeSyncTM technology, the VX1654 portable monitor harnesses all the specs of a desktop setup for on-the-go gaming. Experience crisp graphics, tear-free visuals, and a responsive gameplay experience from just about anywhere. When you're done playing, use the VX1654 portable monitor with your laptop or tablet to help double your screen space and turbocharge your productivity. USB-C connectivity means that users can connect their favorite consoles and enjoy video, audio, data, 60W of charging and two way power delivery with just a single cable. Users can connect even more of their favorite devices with a mini HDMI port. And with a weight of just 1.5 lbs. and a profile that's slimmer than a deck of cards, this portable monitor slips easily into bags, briefcases or backpacks.

More from the Manufacturer

Product Type: Gaming LED Monitor

Technical Information

---

Number of Screens: 1
Screen Size Class: 16"
Viewable Screen Size: 15.6"
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 5 ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Features:

Anti-glare

On-screen Display (OSD)

Cable Lock Slot

Landscape/Portrait Viewable

Horizontal Frequency:

24 kHz to 165 kHz - Mini HDMI 2.0

165 kHz - USB Type C

Vertical Frequency:

48 Hz to 144 Hz - USB Type C

48 Hz to 144 Hz - Mini HDMI 2.0

Adjustable Stand: No
Stand Adjustments: Tilt
Glass Hardness: 3H

Video

---

Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 144 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 800:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 250 cd/m²
Tearing Prevention Technology: FreeSync
Native Resolution: 1920 x 1080

Audio

---

Number of Speakers: 2
Speakers: Yes

Interfaces/Ports

---

HDMI: Yes
Mini HDMI: Yes
USB: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Total Number of Mini HDMI Ports: 1
Number of USB Ports: 1
Total Number of USB Type-C Ports: 1

Environmental Conditions

---

Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 90% (Non-condensing)

Power Description

---

Operating Power Consumption: 7.60 W
Standby Power Consumption: 300 mW
Maximum Power Consumption: 9.60 W

Physical Characteristics

---

Color Family: Black
Product Color: Black
Height: 8.90" (226.06 mm)
Width: 14.10" (358.14 mm)
Depth: 0.70" (17.78 mm)
Height with Stand: 8.90" (226.06 mm)
Width with Stand: 14.10" (358.14 mm)
Depth with Stand: 0.70" (17.78 mm)
Weight (Approximate): 1.50 lb (680.39 g)
Weight with Stand (Approximate): 1.50 lb (680.39 g)

Miscellaneous

---

Package Contents:

• 16'' Portable 1080p 144Hz IPS Gaming Monitor with FreeSync and 60W USB-C
• mini HDMI to HDMI Cable
• USB-C Cable
• Sleeve Case
• Quick Start Guide

Application/Usage: Gaming
Energy Star: Yes
Country of Origin: China
Energy Efficiency Certification: ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty: 3 Year
