Description:
General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-632X-4G-US
Brand Name: QNAP
Product Model: TS-632X-4G-US

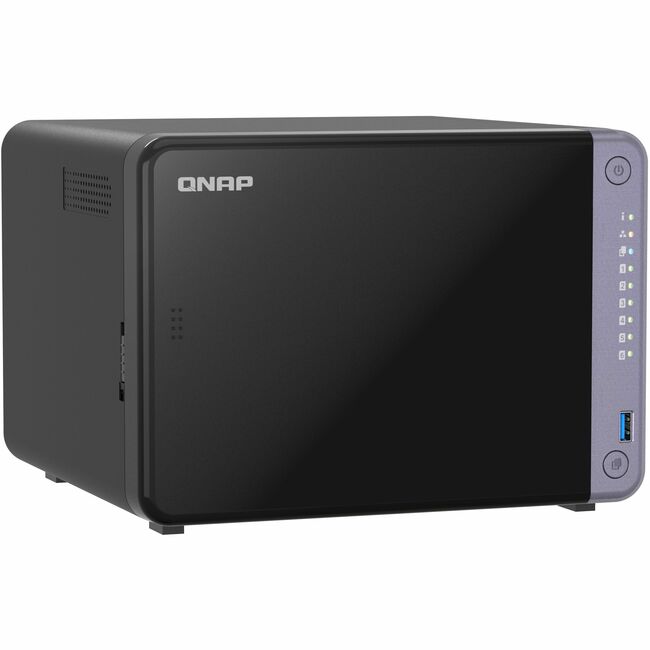

Product Name: TS-632X-4G-US NAS Storage System
Marketing Information:
Unlock the potential of 6-bay storage capacity and harness the speed of 10GbE with the TS-632X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-632X streamlines workflow efficiency without exceeding your budget.
Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
Dual-port 10GbE SFP+
High-speed 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.
Product Type: NAS Storage System
Storage
Number of Hard Drives Supported: 6
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 512 MB
Processor & Chipset
Processor Manufacturer: Annapurna Labs
Processor Type: Alpine
Processor Model: AL524
Processor Core: Quad-core (4 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 4 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 6
Number of 3.5" Bays: 6
Total Number of Expansion Slots: 3
Expansion Slot Type: SFP+
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
Interfaces/Ports
Drive Interface: Serial ATA/600Serial ATA/300HDMI: Yes
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: QTS 5.2.3
Management & Protocols
Protocols: PPTPL2TPIPSecWEBDAVHTTPHTTPSIPv4IPv6SSHTelnetCIFS/SMBFTPAFPiSCSISNMPSSL/TLSTFTPSFTPFXPLDAPDDNSPower Description
Maximum Power Supply Wattage: 120 W
Physical Characteristics
Height: 8.92" (226.57 mm)
Width: 9.25" (234.95 mm)
Depth: 6.50" (165.10 mm)
Form Factor: Tower
Weight (Approximate): 5.51 lb (2499.29 g)
Miscellaneous
Package Contents:
- TS-632X-4G-US NAS Storage System
- AC Adapter
Warranty
Limited Warranty: 2 Year
