Description:
General Information
Manufacturer: Corsair
Manufacturer Part Number: CP-9020257-NA
Brand Name: Corsair
Product Series: SF
Product Model: RPS0176

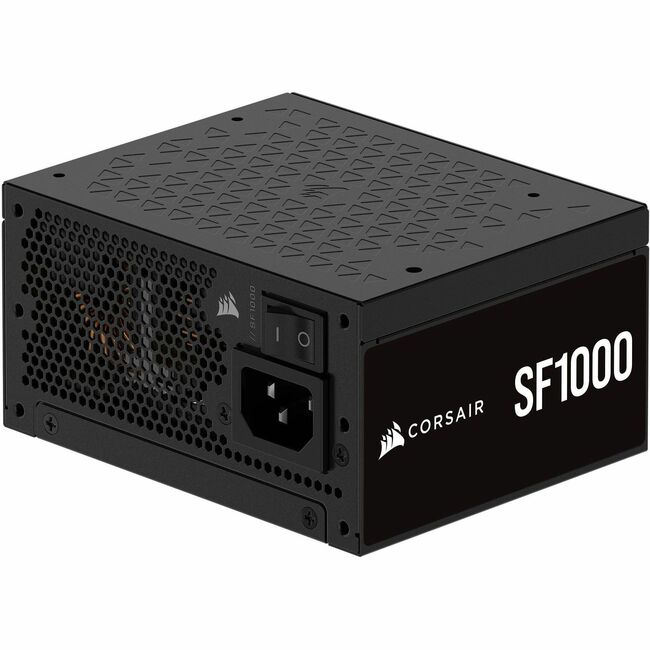

Product Name: SF RPS0176 1000W Power Supply
Marketing Information:
SMALL AND MIGHTY
Don't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Product Type: Power Supply
Technical Information
Specification Compliance: ATX12V v3.1
Number of Fans: 1
Fan Bearing Type: Fluid Dynamic Bearing
Fan Diameter: 92 mm (3.62")
Modular: Yes
Modular Type: Fully Modular
NVIDIA SLI Supported: Yes
Features: Low Noise
Reliability
MTBF: 100000 Hour
Power Description
Input Voltage: 120 V230 VOutput Voltage: 3.3 V5 V12 V5 V SBOutput Voltage Detail: 3.3 V @ 20 A5 V @ 20 A12 V @ 83.3 A5 V SB @ 3 AOutput Current: 20 A83.30 A3 AOutput Power: 1 kW
Interfaces/Ports
Number of SATA Power Connectors: 8
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: SFXInternalHeight: 2.50" (63.50 mm)
Width: 4.92" (125 mm)
Depth: 3.94" (100 mm)
Miscellaneous
Energy Efficiency Certification: 80 Plus Platinum
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 7 Year
