Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02857-001
Brand Name: AXIS
Product Series: P12
Product Model: P1245 Mk II
Product Name: P1245 Mk II Modular Standard Camera
Marketing Information:
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that's easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

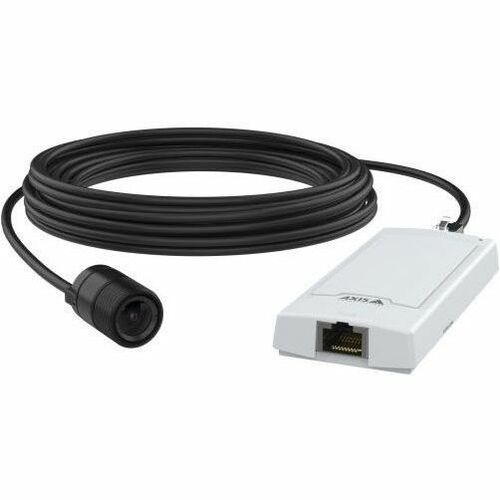

AXIS P1245 Mk II Modular Standard Camera with 8 meter cable option.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won't fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it's easy to integrate with other devices. Including a standard sensor unit, thisindoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers1080p resolution with a wide, 111° field of view. AxisZipstreamsignificantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there's both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: Full HD
Camera Iris: Fixed
AI-powered: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.9"
Color Supported: Color
Field of View: Horizontal: 111°, Vertical: 61°
Video
Video Formats: H.264H.265Motion JPEGH.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileZipstreamMaximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.8 mm (0.11")
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/2.0
Exposure
Shortest Shutter Speed: 1/16500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTP/2HTTPSTLS v1DiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1SyslogZeroConfIEEE 802.1ARIEEE 802.1X (EAP-TLS)ONVIFStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.10 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PlasticSteelMount Type: Bracket MountSwivel MountRecessed MountWeight (Approximate): 2.65 oz (75 g)
Environmental Conditions
Minimum Operating Temperature: -4°F (-20°C)
Maximum Operating Temperature: 113°F (45°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Maximum Operating Humidity: 85%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:
Wide Dynamic RangeHTTPS EncryptionSD Card Local StorageWhite BalanceMirrorPrivacy MaskingAI AnalyticsPassword ProtectionMotion DetectionHuman DetectionVehicle DetectionIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- P1245 Mk II Modular Standard Camera
- Installation Guide
- Owner Authentication Key
- Sensor Unit
- 8 m (26 ft) Black Cable
- 2 x Locking Nuts
Ingress Protection Rating: IP3X
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
