General Information

---

Manufacturer: TRENDnet
Manufacturer Part Number: TEG-S3160
Brand Name: TRENDnet
Product Model: TEG-S3160

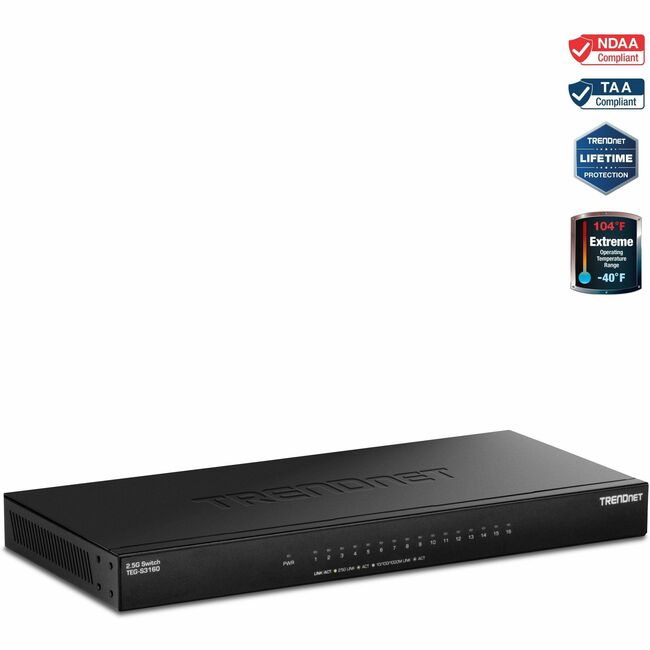

Product Name: 16-Port Unmanaged 2.5G Desktop Switch
Marketing Information: Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19? 1U rack installations. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput.

• DEVICE INTERFACE: 16 x 2.5G RJ-45 (10Mbps/100Mbps/1Gbps/ 2.5Gbps); LED indicators
• LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S3160 16-Port Unmanaged 2.5G Desktop Network Ethernet Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 2.5G PORTS: The 16 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• SWITCHING CAPACITY: The unmanaged switch is equipped with a 80Gbps Switching Capacity
• WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
• FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.

More from the Manufacturer

Product Type: Ethernet Switch

Technical Information

---

Features: Fanless

Interfaces/Ports

---

Total Number of Network Ports: 16
Network (RJ-45): Yes

Media & Performance

---

Media Type Supported: Twisted Pair
Ethernet Technology: 2.5 Gigabit Ethernet
Network Technology: 2.5GBase-T

Network & Communication

---

Layer Supported: 2
Networking Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3az

IEEE 802.3bz

Management & Protocols

---

Manageable: No

Power Description

---

Input Voltage:

120 V AC

230 V AC

Power Source: AC
Power Consumption: 7.26 W

Physical Characteristics

---

Form Factor:

Rack-mountable

Wall Mountable

Desktop

Height: 1.06" (27 mm)
Width: 5.04" (128 mm)
Length: 11.26" (286 mm)
Weight (Approximate): 2.16 lb (982 g)

Miscellaneous

---

Package Contents:

16-Port Unmanaged 2.5G Desktop Switch

Quick Installation Guide

Rackmount Kit

Power Adapter (12V DC, 3A)

Warranty

---

Limited Warranty: Lifetime
