General Information

---

Manufacturer: Eaton Corporation
Manufacturer Part Number: BC600RNC
Brand Name: Tripp Lite by Eaton
Product Model: BC600RNC

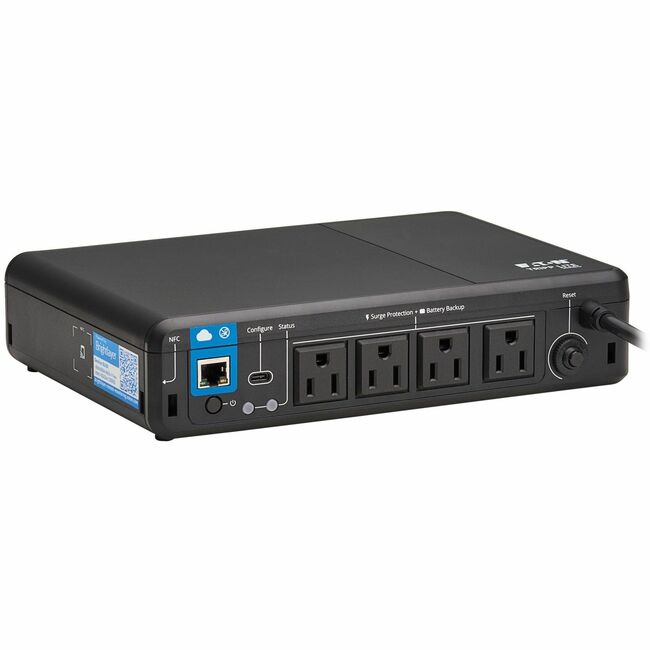

Product Name: BC600RNC 600VA Desktop/Surface/Wall Mountable UPS
Marketing Information: 600VA battery backup for PCs and retail point-of-sale application is a standby, Cloud-connected UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Eaton's cloud-based, remote, monitoring dashboard offers convenient setup, control and management of a single UPS. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app or web browser. Unit's NFC area lets you transfer custom network settings instantly from your mobile device. UPS features four NEMA 5-15R outlets.
Packaged Quantity: 1 Each
Product Type: Standby UPS

Technical Information

---

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 97% (AC Mode)
Application/Usage:

Computer

POS

Home

Office

Retail

Kiosk

Food Service

Light Industrial Application

Computer Peripheral

Surge Suppression: Yes
Features:

Audible Alarm

Cold Start Function

Green Energy Saving

Power Description

---

Load Capacity (VA): 600 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Input Current: 5 A
Output Voltage: 120 V AC
Input Frequency:

50 Hz

60 Hz

Output Frequency:

50 Hz

60 Hz

Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 190 J
Circuit Breaker: Yes
Output Power Factor: 0.5

Management

---

Network Management: Network Card
Alarm:

Battery Mode

Low Battery

Fault

Controls/Indicators

---

Status Indicators:

LEDs Indicators:

• Low Battery
• Fault
• Power
• Line/Battery Mode

Interfaces/Ports

---

USB: Yes
Network (RJ-45): Yes

Battery Information

---

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1.20 Minute
Backup/Run Time (Half Load): 5 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 6562 ft (2000097.60 mm)
Storage Temperature: 23°F (-5°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 40 dB(A)

Physical Characteristics

---

Height: 2.28" (57.91 mm)
Width: 10.04" (255.02 mm)
Depth: 7.09" (180.09 mm)
Form Factor: Desktop/Surface/Wall Mountable
Weight (Approximate): 4.41 lb (2000.34 g)

Miscellaneous

---

Package Contents:

• BC600RNC 600VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
