Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02864-001
Brand Name: AXIS
Product Series: P91
Product Model: P9117-PV

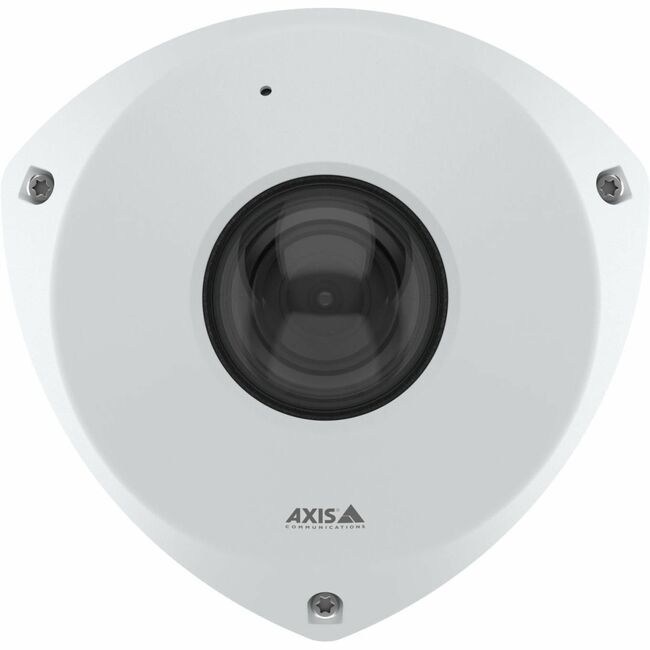

Product Name: P91 9117-PV Network Camera
Marketing Information:
6 MP corner camera with no blind spots
? AXIS P9117-PV delivers 360° panoramic view with no blind spots. This 6 MP corner-mounted camera includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. AXIS TP9801 Cover Steel is also available as an accessory. Featuring a deep learning processing unit, it's possible to run powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different objects of interest. With a built-in microphone, it's out-of-the-box-ready for AXIS Audio Analytics. Furthermore, Axis edge vault, a hardware-based cybersecurity platform, safeguards the device.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Camera Iris: Fixed
AI-powered: Yes
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/1.8"
Color Supported: Color
Field of View: Overview (1:1) :Horizontal field of view: 176° Vertical field of view: 176° Corner View (4:3) :Horizontal field of view: 115° Vertical field of view: 100°
Effective Camera Resolution: 6 Megapixel
Video
Video Formats: H.264H.265Motion JPEGH.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileZipstreamMaximum Video Resolution: 2160 x 2160
Maximum Frame Rate: 60 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 1.1 mm (0.04")
Lens Included: Yes
Maximum Aperture: f/2.2
Exposure
Shortest Shutter Speed: 1/33500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTP/2HTTPSTLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPUPnPSNMPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTPRTSPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1SyslogZeroConfIEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)IEEE 802.1ARONVIFStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 5.30 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Mount Type: Corner MountWall MountCeiling MountForm Factor: Dome
Durability: Vandal ResistantDust ResistantHeight: 3.62" (92 mm)
Width: 5.75" (146 mm)
Depth: 4.80" (122 mm)
Weight (Approximate): 1.68 lb (760 g)
Environmental Conditions
Minimum Operating Temperature: 5°F (-15°C)
Maximum Operating Temperature: 131°F (55°C)
Maximum Operating Humidity: 85%
Miscellaneous
Features: Day/NightWide Dynamic RangeIngress ProtectionHTTPS EncryptionPassword ProtectionPrivacy MaskingWhite BalancePTZNoise Reduction3D Noise ReductionIndoor/Outdoor: Indoor
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
