General Information

---

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: VG2457V
Brand Name: ViewSonic
Product Model: VG2457V

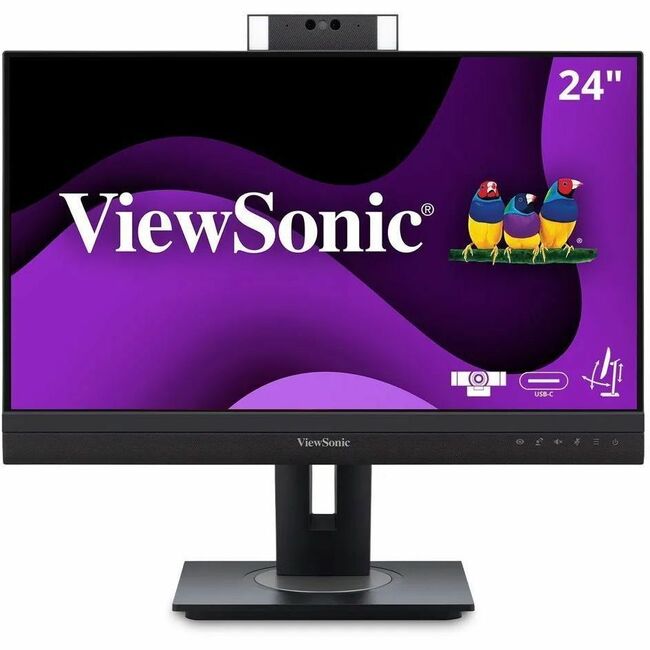

Product Name: 23.8" 1080p Video Conferencing Monitor with Windows Hello Compatible IR Webcam, 90W USB C, Docking
Marketing Information: ViewSonic VG2457V video conferencing monitor is a docking monitor with premium features such as a pop-up webcam that will help maintain productive meetings whether in the office or working from home, with secure features like a Windows Hello compatible IR camera and Zoom certification for peace of mind on security and reliable conferencing. Premium webcam features to improve visual and audio aspects of video calls such as built in LED lighting, and a front firing speaker bar. The IR camera allows for secure and easy sign-on with Windows Hello. Full docking functionality (daisy chain, USB-C single cable connectivity with 90W power delivery, reliable ethernet connectivity) simplifies accessories needed to deploy for IT infrastructure.

More from the Manufacturer

Packaged Quantity: 1
Product Type: LED Monitor

Technical Information

---

Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 23.8"
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Arm-mountable
Features:

Anti-glare

On-screen Display (OSD)

Cable Lock Slot

Digital Daisy Chain

Ergonomic Design

Dual Monitor Support

Low Blue Light

Flicker-free

Horizontal Frequency:

15 kHz to 110 kHz - DisplayPort

15 kHz to 110 kHz - HDMI 1.4

15 kHz to 110 kHz - USB Type C

Vertical Frequency:

50 Hz to 100 Hz - Displayport

50 Hz to 100 Hz - USB Type C

50 Hz to 100 Hz - HDMI 1.4

Stand Adjustments:

Swivel

Height

Pivot

Tilt

Glass Hardness: 3H

Video

---

Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 100 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,300:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 250 cd/m²

Audio

---

Number of Speakers: 2
Speakers: Yes

Interfaces/Ports

---

Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 2
Total Number of HDMI Ports: 2
Number of DisplayPorts: 2
Number of USB Ports: 4
Total Number of USB Type-C Ports: 2

Built-in Devices

---

Built-in Devices: USB Hub
Webcam: Yes
Microphone: Yes

Environmental Conditions

---

Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 90% (Non-condensing)

Power Description

---

Operating Power Consumption: 167.80 W
Standby Power Consumption: 500 mW
Maximum Power Consumption: 167.80 W

Physical Characteristics

---

VESA Mount Compatible: Yes
Color Family: Black
Color: Black
Height: 13.74" (349 mm)
Width: 21.22" (539.04 mm)
Depth: 2.20" (55.80 mm)
Height with Stand: 20.15" (511.83 mm)
Width with Stand: 21.22" (539.04 mm)
Depth with Stand: 7.96" (202.18 mm)
Weight (Approximate): 10.14 lb (4600 g)
Weight with Stand (Approximate): 15.21 lb (6900 g)
Compressed Height with Stand: 15.82" (401.83 mm)
Extended Height with Stand: 20.15" (511.83 mm)

Miscellaneous

---

Package Contents:

• 23.8" 1080p Video Conferencing Monitor with Windows Hello Compatible IR Webcam, 90W USB C, Docking
• Power Cable
• HDMI to HDMI Cable
• USB Type-C Cable (Male-Male; with Type-A adapter)
• Quick Start Guide

Windows Hello Compatible: Yes
Energy Star: Yes
Country of Origin: China
TAA Compliant: No
Environmentally Friendly: Yes
Environmental Certification: China Environmental United Certification Center (CEC)

Warranty

---

Limited Warranty: 3 Year
