Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: B760MEDGETIWIFI
Brand Name: MSI
Product Line: MPG
Product Model: MPG B760M EDGE TI WIFI

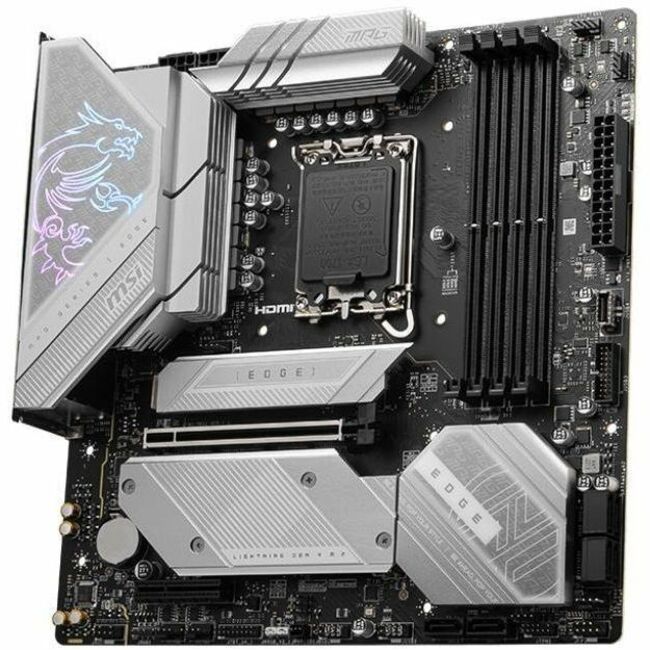

Product Name: MPG B760M EDGE TI WIFI Gaming Desktop Motherboard
Marketing Information:
MPG B760M EDGE TI WIFI is covered with a silver-white color scheme for compact white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 6E solution, optimized DDR5 circuit, PCIe 5.0 solution, and exclusive Screwless M.2 Shield Frozr, and this is the best white B760 mATX motherboard for Intel® Core 14th Gen and 13th Gen processors.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
- Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
- Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
- The VRM heatsink covers the upperMOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
- High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen13th Gen14th GenProcessor Supported: CorePentium GoldCeleronMemory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz7800 MHz7600 MHz7400 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 1.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 5.0PCI Express 3.0Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 3
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
- MPG B760M EDGE TI WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- Shout out Flyer
- Sata Cable
- 2 x E.z M.2 Clip Packages
- Front Panel Cable
- Cable Sticker
- Wi-fi Antenna
- European Union Regulatory Notice
