Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: DS106P
Brand Name: TP-Link
Product Line: Omada
Product Model: DS106P

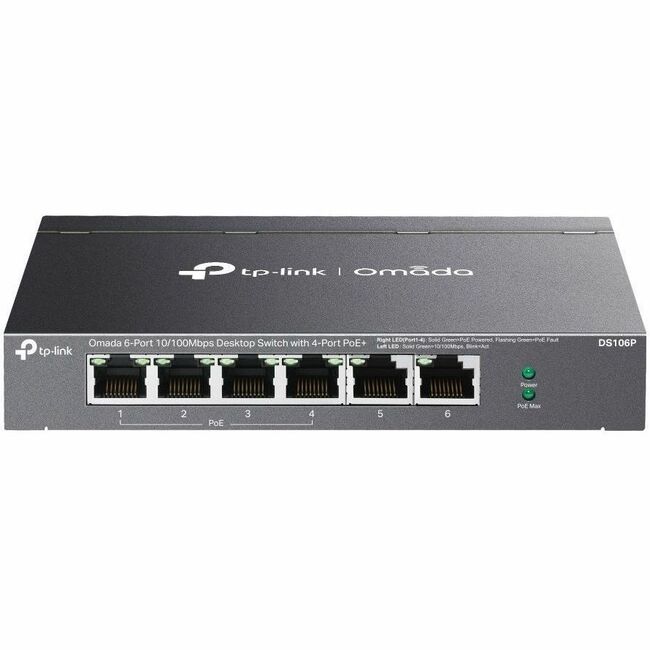

Product Name: Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
Marketing Information:
- 67 W PoE Budget
- Long-Range PoE+ (250m)
- One-Click Priority Mode
- PoE Auto Recovery
- Desktop or Wall-Mounting
- Plug and Play
- Fanless Design for Silent Operation
- Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas.
Priority Mode | One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
Recovery Mode | PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.
Product Type: Ethernet Switch
Technical Information
Features: Plug and PlayFanlessInterfaces/Ports
Total Number of Network Ports: 10
Network (RJ-45): Yes
Port/Expansion Slot Details: 6 x Fast Ethernet Network4 x Fast Ethernet PoE+Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit EthernetFast EthernetNetwork Technology: 10/100/1000Base-T10/100Base-TNetwork & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3xIEEE 802.3afIEEE 802.3atManagement & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 67 W
Power Source: Power Adapter
Power Consumption: 2.52 W
Physical Characteristics
Product Material: Metal
Form Factor: DesktopWall MountableHeight: 0.98" (25 mm)
Width: 6.22" (158 mm)
Depth: 3.98" (101 mm)
Miscellaneous
Package Contents:
- Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
- Power Adapter
- Installation Guide
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
