Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: B650MPZERO
Brand Name: MSI
Product Model: B650M PROJECT ZERO

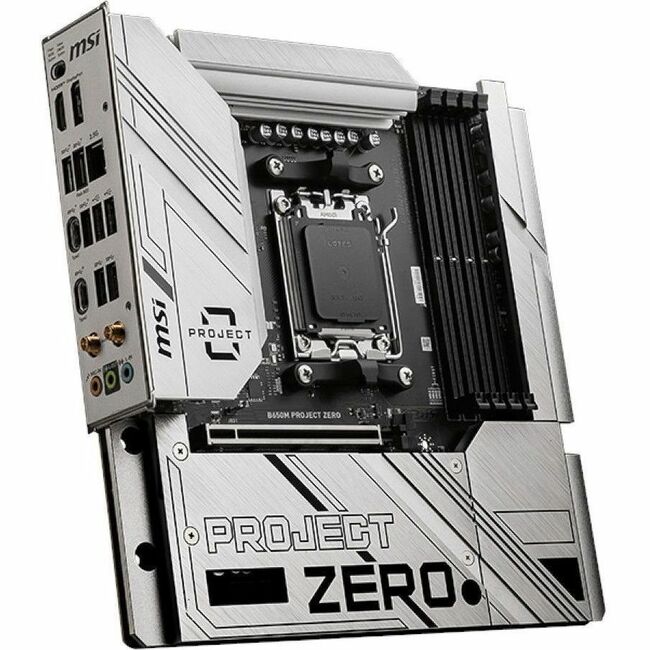

Product Name: B650M PROJECT ZERO Gaming Desktop Motherboard
Marketing Information:
ABSOLUTE SIMPLICITY
B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
DIRECT 10+2+1 PHASES POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, B650M PROJECT ZERO is ready to sustain heavy gaming loadings.
DIY FRIENDLY | Back-Connect Design
The B650M PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 128 GB
Memory Speed Supported: 7600 MHz7400 MHz7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0110Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0PCI Express 3.0Interfaces/Ports
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
- B650M PROJECT ZERO Gaming Desktop Motherboard
- Quick Installation Guide
- Wi-Fi Antenna
- European Union Regulatory Notice
- 2 x SATA Cables
- Cable Sticker
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Taiwan Restriction of Hazardous Substances (Taiwan RoHS)Restriction of Hazardous Substances (RoHS) Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
3 years - Warranty period of 36 months applies on new retail MSI motherboards.
