Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: TD2211
Brand Name: ViewSonic
Product Model: TD2211

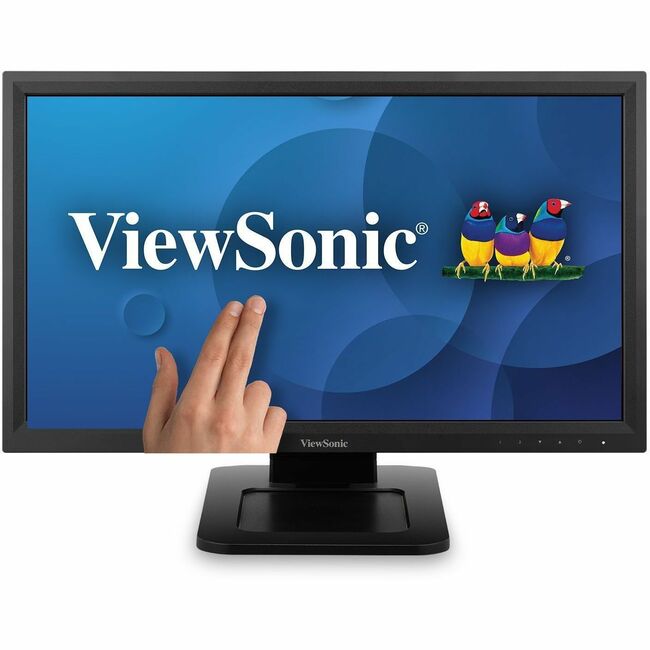

Product Name: TD2211 22" LCD FHD Touch Screen Monitor (VGA, HDMI, DVI, and USB)
Marketing Information:
Featuring a robust 22" touchscreen, the ViewSonic® TD2211 touch display is ideal for use in retail, POS and commercial environments.
Each display comes equipped with resistive touch technology, making it responsive to hands, gloves and styluses alike.
The TD2211 combines Full HD resolution with a 20M:1 dynamic contrast ratio to deliver crystal clear images.
Enjoy flexible connectivity options including HDMI, VGA, DVI and USB ports as well as a VESA-compatible mount design that makes it easy to transform your device into a wall mounted display.
More from the Manufacturer
Packaged Quantity: 1
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 21.5"
Screen Mode: Full HD
Panel Technology: MVA technology
Response Time: 6.80 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Wall Mountable
Backlight Technology: LED
Features: Anti-glareOn-screen Display (OSD)Cable Lock SlotWater ResistantDust ResistantHorizontal Frequency: 24 kHz to 82 kHz - DVI-D24 kHz to 82 kHz - D-sub24 kHz to 84 kHz - HDMI 1.4Vertical Frequency: 50 Hz to 75 Hz - D-sub50 Hz to 75 Hz - DVI-D50 Hz to 75 Hz - HDMI 1.4Stand Adjustments: Tilt
Glass Hardness: 3H
Video
Maximum Resolution: 1920 x 1080
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 3,000:1
Dynamic Contrast Ratio: 20,000,000:1
Brightness: 250 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Resistive
Number of Simultaneous Touchpoints: 1
Interfaces/Ports
DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 3
Number of USB Type-B Ports: 1
Audio Line In: Yes
DVI-D: Yes
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 90% (Non-condensing)
Power Description
Operating Power Consumption: 26.80 W
Maximum Power Consumption: 26.80 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 12.13" (308 mm)
Width: 20.43" (519 mm)
Depth: 2.17" (55 mm)
Height with Stand: 14.84" (377 mm)
Width with Stand: 20.43" (519 mm)
Depth with Stand: 9.45" (240 mm)
Weight (Approximate): 7.72 lb (3500 g)
Weight with Stand (Approximate): 9.70 lb (4400 g)
Miscellaneous
Package Contents:
- TD2211 22" LCD FHD Touch Screen Monitor (VGA, HDMI, DVI, and USB)
- Power Cable
- HDMI Cable
- USB Type A/B cable
- Audio Cable
- Quick Start Guide
Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification:
China Environmental United Certification Center (CEC)Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
