Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PR1000RT2UCN
Brand Name: CyberPower
Product Line: Smart App Sinewave
Product Model: PR1000RT2UCN

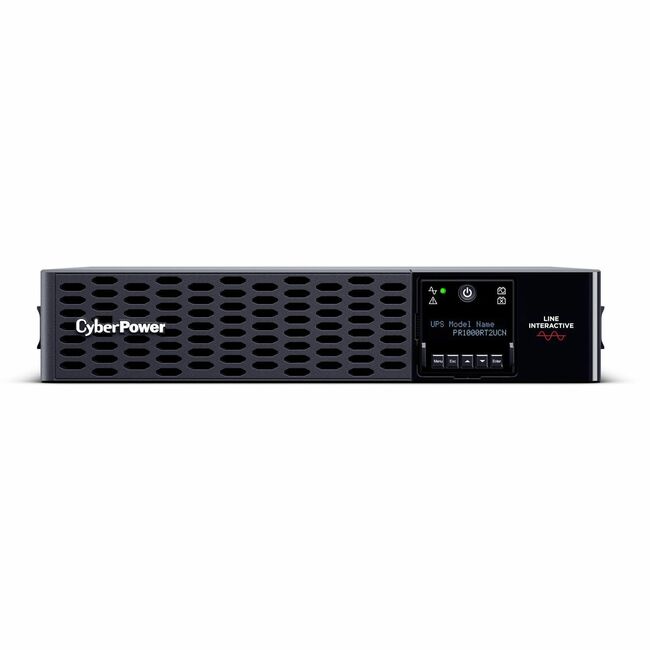

Product Name: PR1000RT2UCN Smart App Sinewave UPS Systems
Marketing Information:
The PR1000RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1000RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system, and built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1000RT2UCN.
More from the Manufacturer
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Number of Critical Load Outlets: 4
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: CorporateNetworkServerTelecommunicationVoIP Phone SystemStorage DeviceNetwork DevicePower Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC75 V AC - 149 V ACOutput Voltage: 100 V AC110 V AC120 V AC125 V ACInput Frequency: 50 Hz60 HzOutput Frequency: 50 Hz60 HzWaveform Type: Sine Wave
Surge Energy Rating: 2430 J
Circuit Breaker: Yes
Output Power Factor: 1
Display & Graphics
Display: LCD
Management
Network Management: SNMP/HTTP Remote Monitoring
Alarm: Battery Mode
Controls/Indicators
Status Indicators: Power On
Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 19.50 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Maximum Storage Elevation: 49213 ft (15000122.40 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 48.60 BTU/h
Physical Characteristics
Product Color: Black
Height: 3.40" (86.36 mm)
Width: 17.10" (434.34 mm)
Depth: 16.20" (411.48 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 50.10 lb (22724.98 g)
Miscellaneous
Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
- Connected Equipment Guarantee: Lifetime
- Connected Equipment Guarantee: $400,000
0 items
):
$1,310.95
