Description:
General Information
Manufacturer: IC INTRACOM
Manufacturer Part Number: 153478
Brand Name: Manhattan
Product Model: 153478

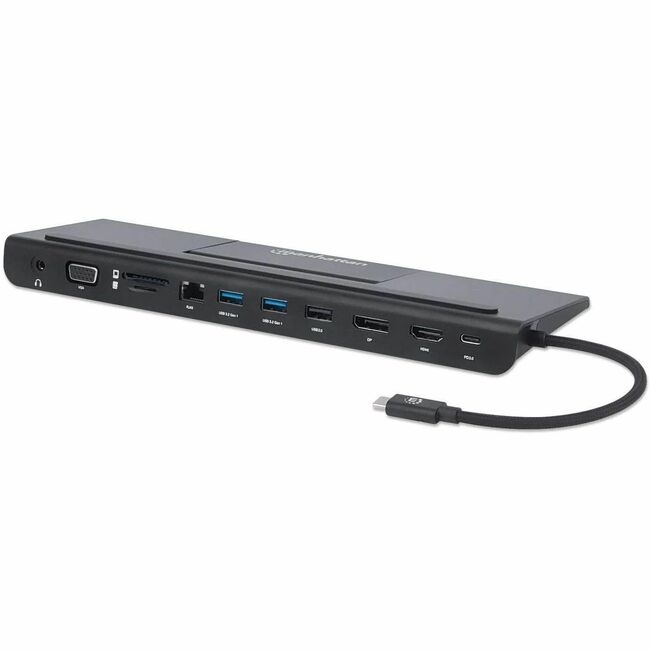

Product Name: 153478 Docking Station
Marketing Information:
The USB-C Docking Station with MST from Manhattan – drive three monitors at once with 11 connections to your device
Increase your productivity with your desktop, notebook or tablet using this highly versatile docking station from Manhattan. Its Multi-Stream Transport (MST) technology helps you to multitask on three monitors at the same time since it includes an HDMI, a DisplayPort and a VGA port.
Connections to all your peripherals
With three USB ports for mice, keyboards and flash drives, a 3.5 mm stereo port for a headset and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks and Macbooks.
Up to 100 W charging power with USB-C Power Delivery (PD)
The included USB-C PD port lets you charge your notebook with up to 100 W while simultaneously charging your other mobile devices, such as smartphones or tablets through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.
Take your phone to the big screen
Connect any Android 9 and later smartphone that supports video output over USB-C and enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation – all from your phone.
A multiport adapter that's made to go where you go
Sturdy aluminum housing makes this multiport adapter the perfect travel companion. Despite its massive connectivity options, it’s still compact enough to fit right in your backpack or computer bag with your main device. Thanks to its fold-out kickstand, you can place your laptop directly on the docking station.
Package Type: Retail
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 640 x 480800 x 6001024 x 7683840 x 21601920 x 10801920 x 12001280 x 720Screen Mode Supported: SVGAXGA4K UHDFull HDWUXGAHDMemory Card Reader: Yes
Memory Card Supported: SDmicroSDSDHCSDXCMultiMediaCard (MMC)High Speed MultiMediaCard (HS-MMC)Reduced Size MultiMediaCard (MMC)Device Supported: SmartphoneTablet PCFlash DriveKeyboardNotebookMonitorDesktop PCNetwork & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x 24-pin USB-C, male, 1 x USB-C 24-pin input, Power Delivery, female
Number of USB Type-A Ports: 3
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Number of DisplayPorts: 1
DisplayPort: Yes
DisplayPort Version: 1.2
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported: Windows 7Windows 8.1LinuxMac OS X Lion v.10.7.1Android 9.0Physical Characteristics
Product Color: Gray
Height: 10.24" (260 mm)
Width: 3.46" (88 mm)
Depth: 0.91" (23 mm)
Weight (Approximate): 11.99 oz (340 g)
Miscellaneous
Compatibility:
Compatible with all USB-C DP-Alt-Mode compatible desktops, laptops and tablets, including Apple MacBook, Cromebook, Pixel and more
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
