Description:
General Information
Manufacturer: Grandstream Networks, Inc
Manufacturer Part Number: GWN7700P
Brand Name: Grandstream
Product Series: GWN7700
Product Model: GWN7700P

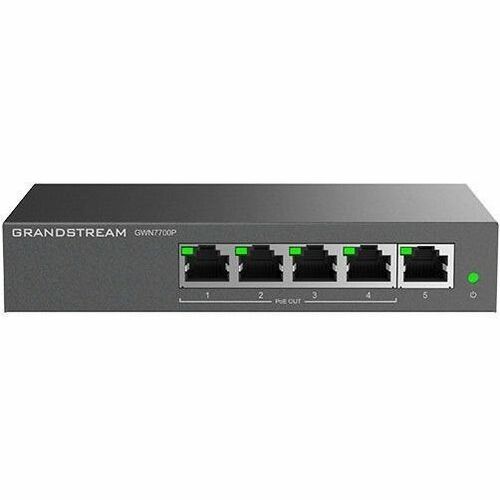

Product Name: GWN7700P Ethernet Switch
Marketing Information:
GWN7700(P&PA) Series
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add highspeed
Gigabit connectivity to home offices and small-to-medium sized businesses.
- 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
- GWN7701PA/GWN7702P only)
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity
to home offices and small-to-medium sized businesses.
The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Product Type: Ethernet Switch
Technical Information
Features: Plug and Play
Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 5 × 100/1000/25000BASE-T Gigabit Ethernet PoE RJ-45 Network Port
Media & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 125 MB/s
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3iIEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.1pIEEE 802.3afIEEE 802.3atIEEE802.3afManagement & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 60 W
Input Voltage: 48 V DC53.5 V DCPower Source: Power Adapter
Power Consumption: 2 W
Physical Characteristics
Product Material: Metal
Form Factor: DesktopWall MountableHeight: 1.06" (27 mm)
Width: 3.15" (80 mm)
Length: 5.71" (145 mm)
Weight (Approximate): 9.17 oz (260 g)
Miscellaneous
Package Contents:
- GWN7700P Ethernet Switch
- 1 x Power Adapter
- 1 x QIG
