Description:
General Information
Manufacturer: Monoprice, Inc
Manufacturer Part Number: 42344
Brand Name: Monoprice

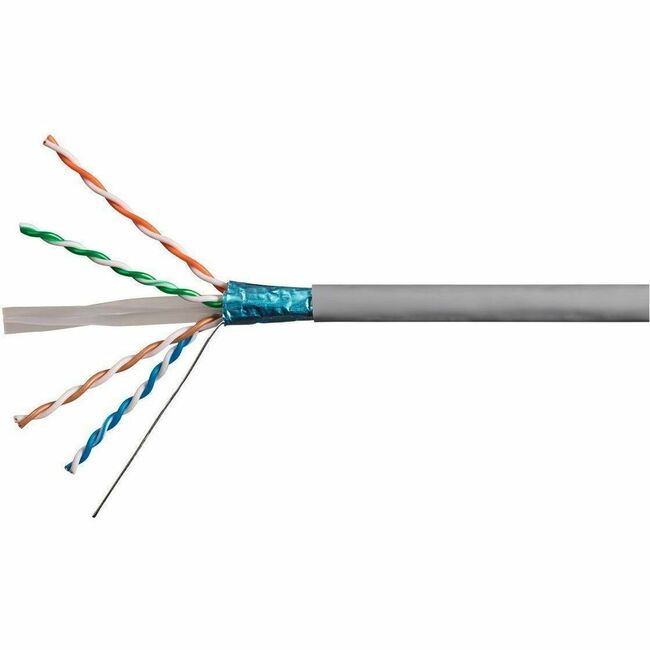

Product Name: Category 6a Network Cable
Marketing Information:
Monoprice™ 23AWG Cat6A 550MHz F/UTP Solid, Riser-Rated (CMR) Bulk Pure Bare Copper Ethernet Cable is premium, high-speed cabling designed for use in 10GBase-T (10Gbps) network environments. Constructed using 23AWG solid, pure bare copper conductors with a CMR-rated PVC jacket, it exceeds TIA/EIA 568-C.2 standards and is safe for use in the Riser spaces of commercial class buildings. F/UTP cables are a hybrid between shielded (STP) and unshielded (UTP) type cables, incorporating an overall foil shield, while leaving the twisted pairs unshielded. This cable is UL-listed and RoHS compliant.
Features:
- Foiled/Unshielded Twisted Pair (F/UTP) Category 6A Ethernet cable
- 23AWG solid, pure bare copper conductors
- CMR (Riser) fire safety rating
- 550MHz bandwidth
- Designed for use in 10GBase-T (10Gbps) network environments
- Exceeds ANSI® TIA/EIA 568-C.2 standards
- UL® listed and RoHS compliant
- 1000-foot wooden spool
Monoprice™ Ethernet cables are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL® Code 444 and National Electrical Code® TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.
Package Type: Bulk
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Length: 500 ft (152.40 m)
Connector Type on First End: Bare Wire
Connector on First End Details: 1 x Barewire
Connector Type on Second End: Bare Wire
Connector on Second End Details: 1 x Barewire
Jacket Type: CMR
Device Supported: Network DeviceServerAmerican Wire Gauge: 23 AWG
Data Transfer Rate: 10 Gbit/s
Features: EMI ProtectionFoiled with Unshielded Twisted Pair (F/UTP)Physical Characteristics
Color Family: Gray
Product Color: Gray
Miscellaneous
Application/Usage: BusinessData CenterEnvironmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
