General Information

---

Manufacturer: Netgear, Inc
Manufacturer Part Number: GS724TP-300NAS
Brand Name: Netgear
Product Line: Smart
Product Model: GS724TP

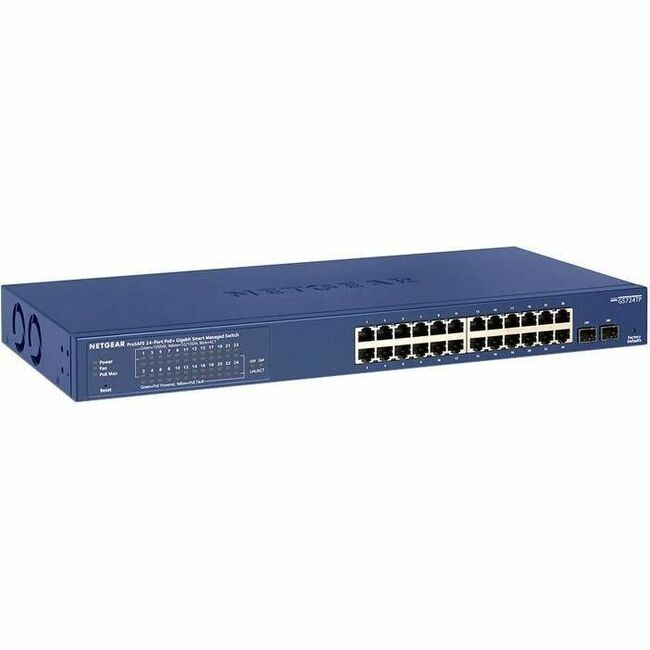

Product Name: Smart GS724TP Ethernet Switch
Marketing Information: As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains.
The GS724TPv2 and GS724TPP 24-Port Gigabit Switch with PoE+ and 2 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TPv2) or 380W (GS724TPP).
NETGEAR Smart Managed Pro Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TPv2) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.
To empower the PoE applications, NETGEAR Insight Remote/Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Product Type: Ethernet Switch

Interfaces/Ports

---

Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

24 x Gigabit Ethernet PoE+

2 x Gigabit Ethernet Expansion Slot

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

10/100/1000Base-T

1000Base-X

I/O Expansions

---

Total Number of Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2

Network & Communication

---

Layer Supported: 4
Networking Standards:

IEEE 802.1x

IEEE 802.1p

IEEE 802.3az

IEEE 802.3

IEEE 802.11ac

IEEE 802.3at

IEEE 802.3af

IEEE 802.1Q

IEEE 802.3ad

IEEE 802.1D

IEEE 802.1w

IEEE 802.1s

Management & Protocols

---

Manageable: Yes
Switch Management Type: Smart Managed

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 190 W
Power Source: Power Supply
Power Consumption: 228.53 W

Physical Characteristics

---

Form Factor:

Rack-mountable

Desktop

Height: 1.69" (43 mm)
Width: 17.32" (440 mm)
Depth: 8.03" (204 mm)
Weight (Approximate): 6.94 lb (3150 g)

Miscellaneous

---

Package Contents:

• Smart GS724TP Ethernet Switch
• Power Cord
• Mounting Kit
• Rubber Footpads for Tabletop Installation
• Installation Guide

Environmentally Friendly: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Restriction of Hazardous Substances (RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty: Lifetime
