Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 4XB7A82609
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: PM1743

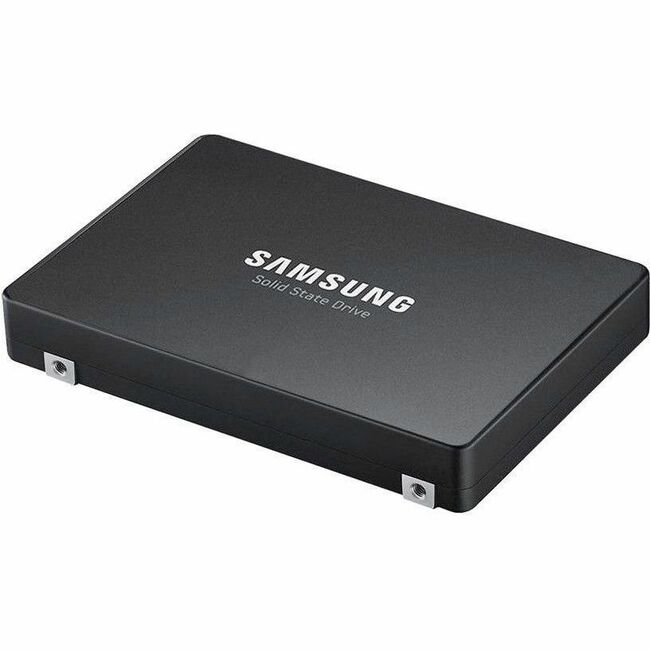

Product Name: ThinkSystem 2.5" 15mm U.3 PM1743 1.92TB Read Intensive NVMe PCIe 5.0 x4 Trayless
Marketing Information:
The ThinkSystem PM1743 Read Intensive NVMe PCIe 5.0 SSDs, available in capacities up to 15.36TB, are general-purpose yet high-performance NVMe PCIe Gen 5 SSDs. Available in both 2.5-inch and E3.S EDSFF form factors, they are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the PM1743 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Product Type: Solid State Drive
Technical Information
Storage Capacity: 1.92 TB
Drive Performance
Maximum Read Transfer Rate: 14000 MB/s
Maximum Write Transfer Rate: 3000 MB/s
Random 4KB Read: 2000000IOPS
Random 4KB Write: 150000IOPS
Endurance (DWPD): 1
Endurance (TBW): 3504 TB
Endurance Type: Read Intensive
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: U.3
Drive Interface Standard: PCI Express NVMe 5.0 x4
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5"
Height: 0.59" (15 mm)
Width: 2.76" (70 mm)
Depth: 3.94" (100 mm)
Weight (Approximate): 6.70 oz (190 g)
Miscellaneous
Device Supported: Server
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:
The PM1743 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
