Product ID: 1076568389

Category:

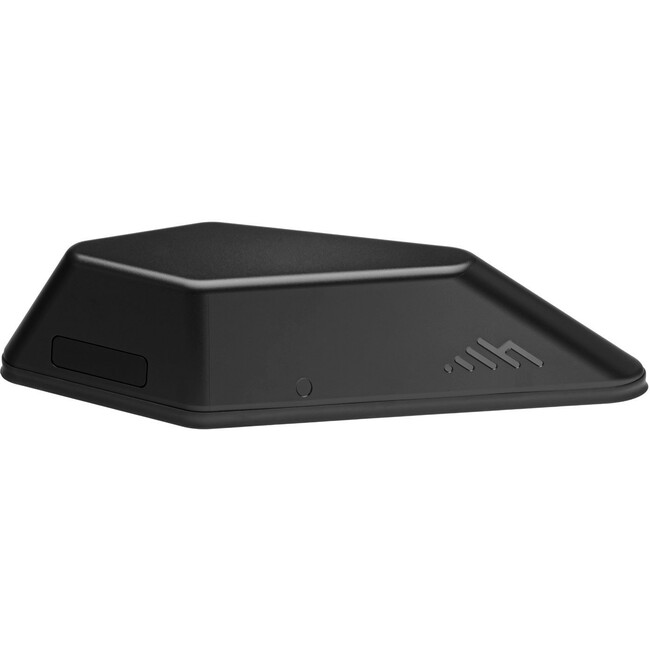

CradlePoint R2100 Series 5G Ruggedized Router


CradlePoint R2100 Series 5G Ruggedized Router

Price (CDN): $4,035.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $4,035.95

Quantity:




Description:
General Information
Manufacturer: ERICSSON
Manufacturer Part Number: TBA5-2105-5GB-GA
Brand Name: CradlePoint
Product Series: R2100
Product Model: R2105
Product Name: R2100 Series 5G Ruggedized Router
Marketing Information:

The R2100 Series 5G Ruggedized Router is designed for vehicle and IoT deployments. This high-bandwidth, exterior-mounted solution provides mass transit, public safety, and other organizations with the latest cellular performance in a uniquely flexible and simplified form factor.

5G Ruggedized Router for High-Performance Vehicle and IoT Connectivity

The Cradlepoint R2100 Series 5G Ruggedized Router is available with the NetCloud Performance Mobile Service plan or the NetCloud Ruggedized IoT Service plan. Designed to be mounted on the roof of a vehicle or attached to IoT cabinet enclosures, the R2100 integrates the modem, antennas, and router into a single aerodynamic, ruggedized casing allowing for simplified deployment. The R2100 is sold with or without Wi-Fi 6 and can be deployed as a self-contained router or to supplement an existing router as a 5G adapter.

High Performance Captive Modem

Customers can add 5G to a current installation by deploying the R2100 series as a Captive Modem with supported Cradlepoint controlling routers. This allows them both to be managed in NetCloud Manager as a single entity. The NetCloud management system treats the R2100 as an internal modem, eliminating the need for a separate license. Similarly, for select controlling routers, the R2100 Series can serve as an additional Wi-Fi source in captive mode to expand coverage for applications such as video offload. The R2100 Series can be PoE powered while providing a high-performance 5G connection over Ethernet.


Product Type: Modem/Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
  • Wireless LAN Standard: IEEE 802.11ax
    ISM Band: Yes
    UNII Band: Yes
    ISM Maximum Frequency: 2.40 GHz
    UNII Maximum Frequency: 5 GHz
    Cellular Generation: 5G
    Cellular Data Connectivity Technology:
  • LTE Advanced Pro
  • UMTS
  • HSPA+
  • Total Number of Antennas: 4
    Number of Internal Antennas: 4
    Interfaces/Ports
    Number of Network (RJ-45) Ports: 1
    PoE (RJ-45) Port: Yes
    Network & Communication
    Ethernet Technology: 2.5 Gigabit Ethernet
    VPN Supported: Yes
    Multi-SIM Supported: Yes
    Number of SIM Card Supported: 2
    SIM Size Supported: Nano
    Physical Characteristics
    Form Factor:
  • Vehicle Mount
  • Cabinet Mount
  • Height: 3.23" (82 mm)
    Width: 15.20" (386 mm)
    Depth: 4.53" (115 mm)
    Weight (Approximate): 1.46 kg
