Description:
General Information
Manufacturer: ERICSSON
Manufacturer Part Number: MB03-2155-5GB-GA
Brand Name: CradlePoint
Product Series: R2100
Product Model: R2155-5GB

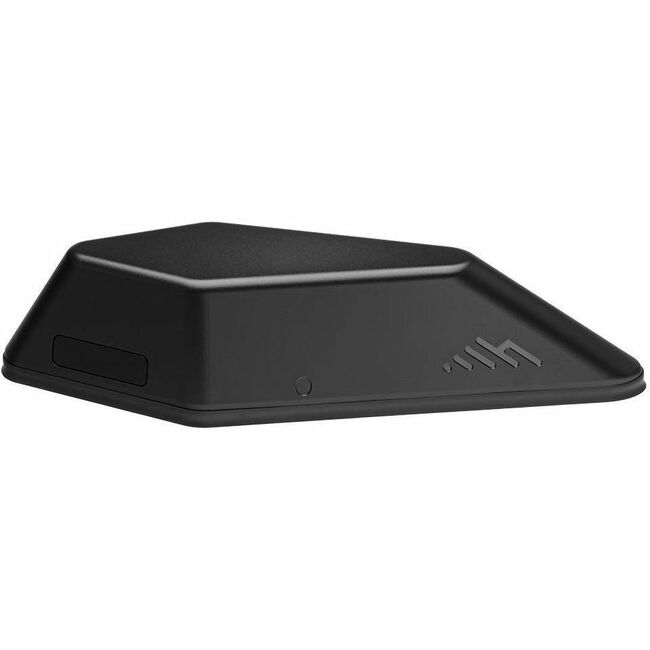

Product Name: R2155-5GB Modem/Wireless Router
Marketing Information:
The Ericsson Cradlepoint R2100 5G ruggedized router is designed for vehicle and IoT deployments. This high-bandwidth, exterior-mounted solution provides mass transit, public safety, and other organizations with the latest cellular performance in a uniquely flexible and simplified form factor.
5G Ruggedized Router for High-Performance Vehicle and IoT Connectivity
The EricssonCradlepointR2100 5G ruggedized routeris available with the EricssonNetCloudPerformance Mobile Service plan or the EricssonNetCloudRuggedized IoT Service plan.Designed to be mounted on the roof of a vehicle or attached to IoT cabinet enclosures, the R2100 integrates the modem, antennas, and router into a single aerodynamic,ruggedizedcasingallowing for simplified deployment. The R2100 is sold with or without Wi-Fi 6 and can be deployed as a self-contained router or to supplement an existing router as a 5G adapter.
High Performance Captive Modem
Customers can add 5G to a current installation by deploying the R2100 as a captive modem with supported Ericsson Cradlepoint controlling routers. This allows them both to be managed in Ericsson NetCloud Manager as a single entity. The Ericsson NetCloud management system treats the R2100 as an internal modem, eliminating the need for a separate license. Similarly, for select controlling routers, the R2100 can serve as an additional Wi-Fi source in captive mode to expand coverage for applications such as video offload. The R2100 can be PoE powered while providing a high-performance 5G connection over Ethernet.
Product Type: Modem/Wireless Router
Technical Information
Processor Core: Quad-core (4 Core)
Standard Memory: 1.80 GB
Wireless Specifications
Broadband Transmission Technology: Cellular
Cellular Generation: 5G
Cellular Network Supported: LTE 2100LTE 1900LTE 1800LTE 1700LTE 850LTE 2600LTE 900LTE 700LTE 800LTE 2300LTE 1500LTE 600LTE 2500LTE 3500LTE 3700LTE 5200LTE 2000Cellular Data Connectivity Technology: LTE Advanced ProLTE5G NRWCDMAUMTSHSPA+Total Number of Antennas: 4
Number of Internal Antennas: 4
Interfaces/Ports
Total Number of Network Ports: 1
Number of Network (RJ-45) Ports: 1
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano
Storage
Flash Memory Capacity: 8 GB
Physical Characteristics
Form Factor: Vehicle MountCeiling MountableExternalHeight: 3.23" (82 mm)
Width: 15.20" (386 mm)
Depth: 4.53" (115 mm)
Weight (Approximate): 3.22 lb (1460 g)
Miscellaneous
Package Contents:
- R2155-5GB Modem/Wireless Router
- GPIO Cable, 2x2, 3 meters, 20 AWG
- Small Accessories Kit
- Mounting Template
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS) Warranty
Limited Warranty: Lifetime
