Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: SDM-HDBT
Brand Name: Sharp
Product Model: SDM-HDBT

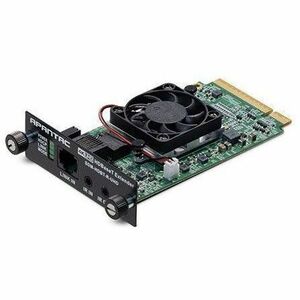

Product Name: Intel Smart Display Module (SDM)
Marketing Information:
The SDM-HDBT is a Intel® Smart Display Module (SDM) that enables a single-cable solution for remote video. Its industrial-grade components are ideal for 24/7 operation and the SDM form factor enables a cable-free installation in either small or large slots.
- 4K@60Hz (4:4:4) up to 100 meters with CAT6a/Cat7 cables
- 40@60Hz (4:2:0) and 1080p (12 bit) and 3D up to 100 meters
- HDMI 2.0 and HDCP 1.4 and 2.2 supported
- CEC and 3D pass-through supported
- RS-232 (bi-directional) support
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 328.08 ft (100000 mm)
HDBase-T: Yes
Video
Graphics Modes: 4K4K UHDSupported Video Modes: 1080p
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Remote (IR) Input: 1
Remote (IR) Output: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7Category 6aCategory 5eCategory 6Miscellaneous
Application/Usage: Digital Signage SystemDisplayWarranty
Limited Warranty: 1 Year
0 items
):
$858.95
