General Information

---

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4100-24P
Brand Name: Juniper
Product Series: EX4100
Product Model: EX4100-24P

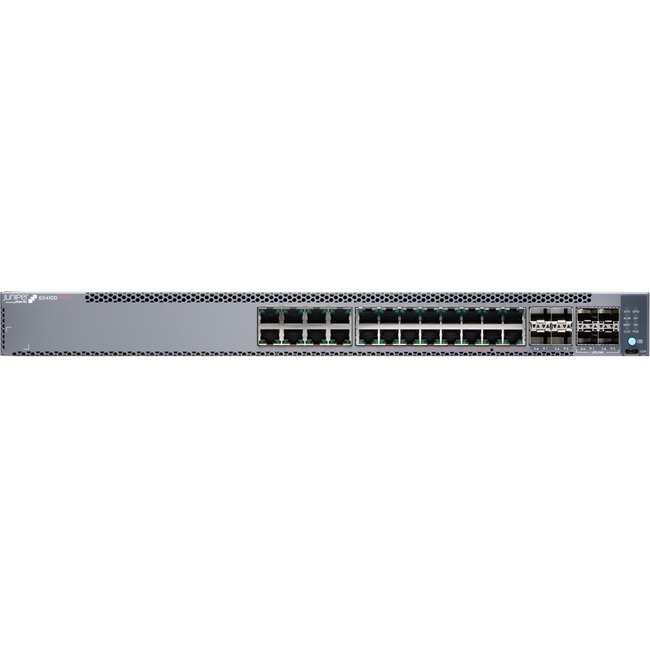

Product Name: EX4100-24P Ethernet Switch
Marketing Information: The Juniper Networks® EX4100 line of Ethernet Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4100 switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100 line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100 include:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bt Power over Ethernet Plus (PoE++)
• Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
• Precision Timing Protocol-Transparent Clock
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100 enables multiple deployments, including campus, branch, and data center top-of-rack deployments. As scale requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100 family of Ethernet switches consists of the following models:

• The EX4100-48MP, which offers 16 x 100 MB/1GbE/2.5GbE and 32 x 10 MB/100MB/1GbE Power over Ethernet (PoE++) access ports, delivering up to 90 W per PoE port with an overall total 1620 W of PoE power budget (using two power supplies)
• The EX4100-24MP, which offers 8 x 100 MB/1GbE/2.5GbE/5GbE/10GbE and 16 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total 1620 W of PoE power budget (using two power supplies)
• The EX4100-24T, which offers 24 x 1GbE non-PoE access ports
• The EX4100-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
• The EX4100-48T, which offers 48 x 1GbE non PoE-access ports
• The EX4100-48P, which offers 48 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)

Product Type: Ethernet Switch

Interfaces/Ports

---

Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

24 x Gigabit Ethernet PoE+

4 x 10 Gigabit Ethernet Uplink

4 x 25 Gigabit Ethernet Stack

Media & Performance

---

Media Type Supported:

Optical Fiber

Twisted Pair

Ethernet Technology:

10 Gigabit Ethernet

Gigabit Ethernet

25 Gigabit Ethernet

Network Technology:

10/100/1000Base-T

10GBase-X

25GBase-X

I/O Expansions

---

Total Number of Expansion Slots: 8
Expansion Slot Type:

SFP+

SFP28

Number of SFP+ Slots: 4

Network & Communication

---

Layer Supported: 3
Networking Standards:

IEEE 802.3bt

IEEE 802.3af

IEEE 802.3at

IEEE 802.1ae

IEEE 802.11ax

IEEE 802.1ab

IEEE 802.1ak

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1x

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3ae

IEEE 802.3by

IEEE 802.3ax

IEEE 802.3ah

IEEE 802.1D

IEEE 802.1s

IEEE 802.1w

IEEE 802.3ad

Management & Protocols

---

Manageable: Yes

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 740 W
Input Voltage:

120 V AC

230 V AC

Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2

Physical Characteristics

---

Compatible Rack Unit: 1U
Form Factor:

Rack-mountable

Wall Mountable

Height: 1.72" (43.69 mm)
Width: 17.36" (440.94 mm)
Depth: 13.78" (350.01 mm)
Weight (Approximate): 10.01 lb (4540 g)

Miscellaneous

---

Package Contents:

• EX4100-24P Ethernet Switch
• 1 x JPSU-920-AC-AFO

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes

Warranty

---

Limited Warranty: Lifetime
