Manufacturer: StarTech.com
Manufacturer Part Number: J9152A-ST
Brand Name: StarTech.com

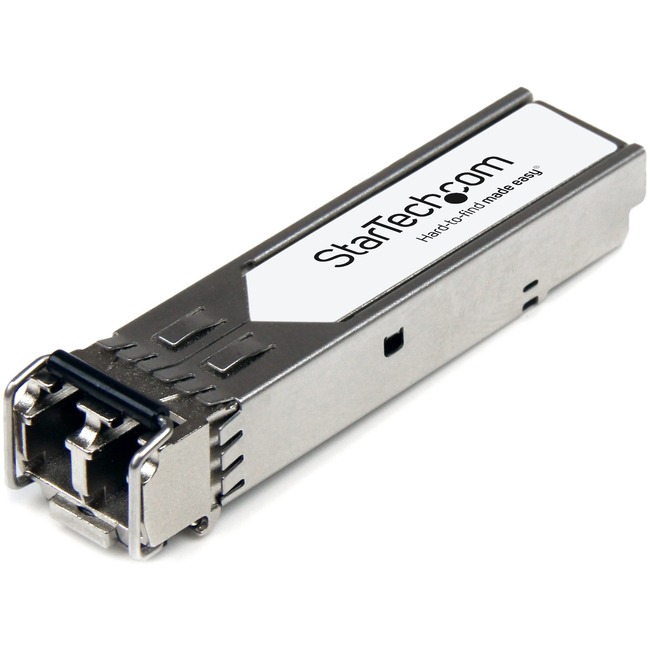

Product Name: HP J9152A Compatible SFP+ Transceiver Module - 10GBASE-LRM
Marketing Information: The J9152AST is an HP J9152A compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 220 m (721 ft).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 220 m (721 ft)
• MTBF: 1,535,075 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Product Type: SFP+
Packaged Quantity: 1

Technical Information

---

Application/Usage:

Data Networking

Optical Network

Interfaces/Ports

---

Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 10GBase-LRM Network

Media & Performance

---

Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-LRM

Physical Characteristics

---

Form Factor:

Hot-pluggable

Hot-swappable

Height: 0.50" (12.70 mm)
Width: 0.50" (12.70 mm)
Depth: 2.30" (58.42 mm)
Weight (Approximate): 0.70 oz (19.84 g)

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Switches:

• ASR920
• IE2000
• IE4000
• C9300
• IE3000
