Description:
General Information
Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: ECS2552FP
Brand Name: EnGenius
Product Series: ECS
Product Model: ECS2552FP

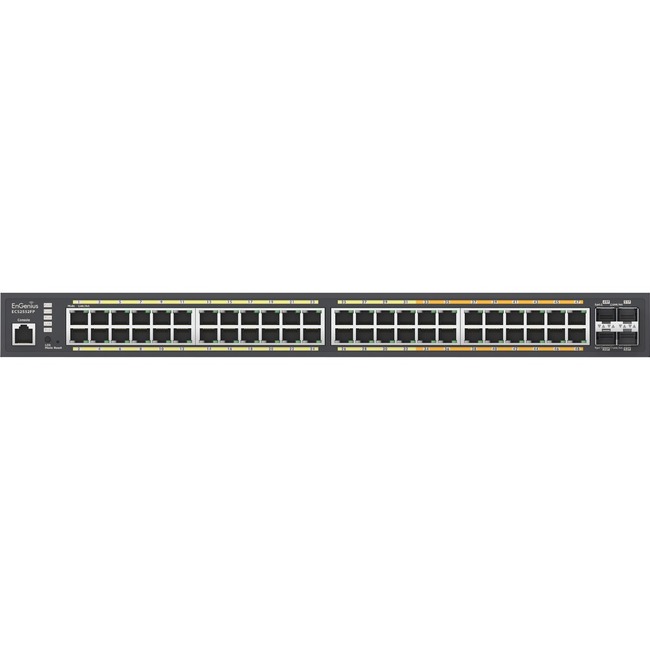

Product Name: ECS2552FP Ethernet Switch
Marketing Information:
The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
Features & Benefits
- 48 10/100/1000/2500 Base-T GbE Ports
- 32 Gigabit and 16 2.5-Gigabit PoE Ethernet Ports
- Full-Featured Layer 2+ Ethernet Switch
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 224 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
Packaged Quantity: 1
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Port/Expansion Slot Details: 48 x Gigabit Ethernet Ports4 x 10 Gigabit Expansion SlotsMedia & Performance
Media Type Supported: Optical FiberTwisted PairEthernet Technology: 10 Gigabit EthernetGigabit EthernetNetwork Technology: 10/100/1000Base-T10GBase-XI/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3bzIEEE 802.3xIEEE 802.3afIEEE 802.3atIEEE 802.1pIEEE 802.1DIEEE 802.1QIEEE 802.1xIEEE 802.3azManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 740 W
Input Voltage: 120 V AC230 V ACPower Consumption: 913 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 12.20" (309.88 mm)
Depth: 17.32" (439.93 mm)
Weight (Approximate): 10.74 lb (4871.58 g)
Miscellaneous
Package Contents:
- ECS2552FP Ethernet Switch
- 1x Quick Installation Guide
- 1x Power Cord
- 1x RJ45 Console Cable
- 1x Rack Mount Kit
Warranty
Limited Warranty: 2 Year
