General Information

---

Manufacturer: Palo Alto Networks
Manufacturer Part Number: PAN-PA-3410
Brand Name: Palo Alto
Product Series: PA-3400
Product Model: PA-3410

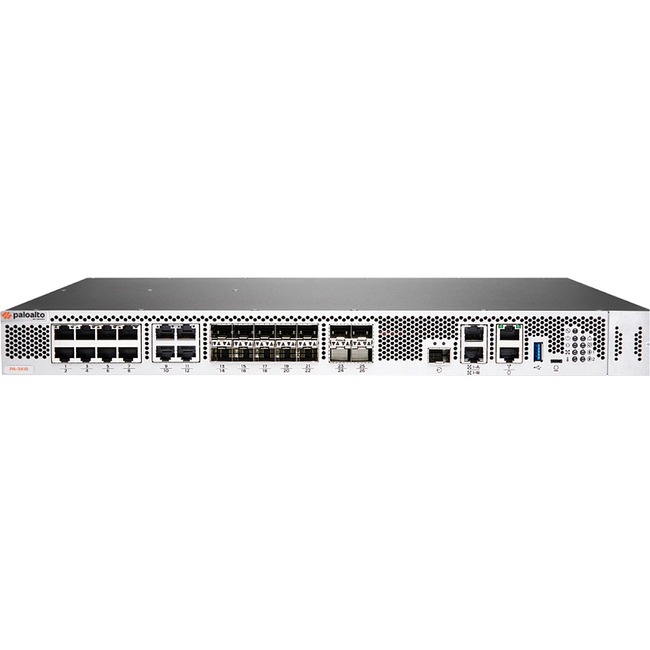

Product Name: PA-3410 Network Security/Firewall Appliance
Marketing Information: Palo Alto Networks PA-3400 Series ML-Powered NGFWs-comprising the PA-3440, PA-3430, PA-3420, and PA-3410-target high-speed internet gateway deployments. The PA-3400 Series appliances secure all traffic.

The world's first ML-Powered Next-Generation Firewall (NGFW) enables you to prevent unknown threats, see and secure everything-including the Internet of Things (IoT)-and reduce errors with automatic policy recommendations.

The controlling element of the PA-3400 Series is PAN-OS®, the same software that runs all Palo Alto Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content, and then ties that traffic to the user regardless of location or device type. The application, content, and user-in other words, the elements that run your business-then serve as the basis of your security policies, resulting in improved security posture and reduced incident response time.

Key Security and Connectivity Features | ML-Powered Next-Generation Firewall

• Embeds machine learning (ML) in the core of the firewall to provide inline signatureless attack prevention for file-based attacks while identifying and immediately stopping never-before-seen phishing attempts.
• Leverages cloud-based ML processes to push zero-delay signatures and instructions back to the NGFW
• Uses behavioral analysis to detect IoT devices and make policy recommendations; cloud-delivered and natively integrated service on the NGFW.
• Automates policy recommendations that save time and reduce the chance of human error.

Identifies and Categorizes All Applications, on All Ports, All the Time, with Full Layer 7 Inspection

• Identifies the applications traversing your network irrespective of port, protocol, evasive techniques, or encryption (TLS/SSL). In addition, it automatically discovers and controls new applications to keep pace with the SaaS explosion with SaaS Security subscription.
• Uses the application, not the port, as the basis for all your safe enablement policy decisions: allow, deny, schedule, inspect, and apply traffic-shaping.
• Offers the ability to create custom App-ID™ tags for proprietary applications or request App-ID development for new applications from Palo Alto Networks.
• Identifies all payload data within the application (e.g., files and data patterns) to block malicious files and thwart data exfiltration attempts.
• Creates standard and customized application usage reports, including software-as-a-service (SaaS) reports that provide insight into all sanctioned and unsanctioned SaaS traffic on your network.
• Enables safe migration of legacy Layer 4 rule sets to App-ID-based rules with built-in Policy Optimizer, giving you a rule set that is more secure and easier to manage.

Product Type: Network Security/Firewall Appliance

Technical Information

---

Functionality: Intrusion Prevention
Firewall Protection Supported:

Threat Protection

IoT Security

Anti-phishing

TLS Decryption

SSL Encrypted Traffic Protection

User Authentication

Data Loss Prevention

URL Filtering

DNS Security

Secure IPsec VPN Connectivity

SaaS Security

Intrusion Prevention

Advanced Threat Protection

Malware Protection

Web Protection

Antivirus

Anti-spyware

Firewall Throughput: 14.50 Gbit/s
Encryption Standard:

3DES

AES (128-bit)

AES (192-bit)

AES (256-bit)

MD5

SHA-1

SHA-256

SHA-384

SHA-512

Interfaces/Ports

---

Total Number of Ports: 12
USB: Yes
Number of Network (RJ-45) Ports: 12

Media & Performance

---

VPN Throughput: 870.40 MB/s

Network & Communication

---

Ethernet Technology: 25 Gigabit Ethernet
Network Standard:

10GBase-T

10GBase-X

I/O Expansions

---

Total Number of Expansion Slots: 14
Expansion Slot Type:

SFP+

SFP28

Number of SFP+ Slots: 10

Management & Protocols

---

Manageable: Yes

Power Description

---

Frequency:

50 Hz

60 Hz

Physical Characteristics

---

Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.70" (43.18 mm)
Width: 17.15" (435.61 mm)
Depth: 14.15" (359.41 mm)
Weight (Approximate): 15.50 lb (7030.68 g)
