General Information

---

Manufacturer: Vivotek, Inc
Manufacturer Part Number: IB9369-F2
Brand Name: Vivotek
Product Series: C
Product Model: IB9369-F2

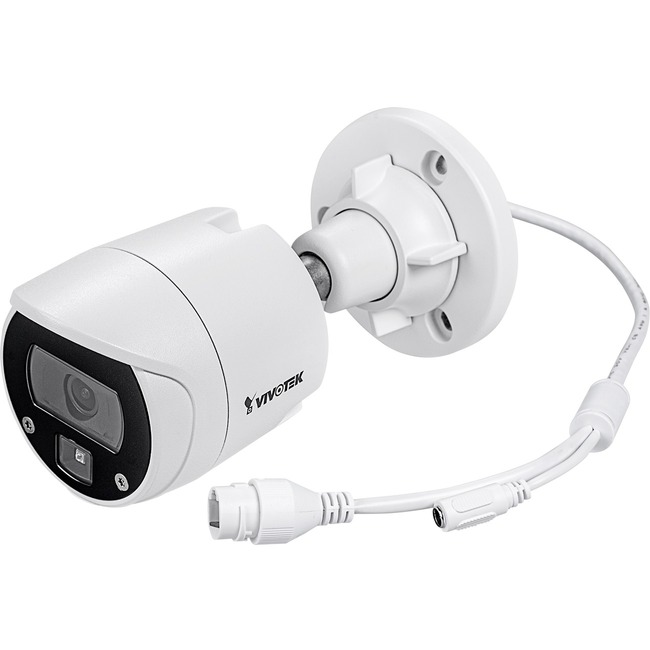

Product Name: IB9369-F2 Network Camera
Marketing Information: VIVOTEK IB9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. IB9369 offers fixed-focal lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility.

For harsh outdoor environment, IB9369 is encased in IP66 and IK10 housing. Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. Lastly the IB9369 uses H.265 compression technology, which helps to reduce bandwidth and storage consumption.
Product Type: Network Camera

Technical Information

---

HD Recording: Yes
Recording Formats: Full HD
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared

Display & Graphics

---

Image Sensor Type: CMOS
Color Supported: Color
Field of View: 118° (Horizontal) 65° (Vertical) 140° (Diagonal)
Effective Camera Resolution: 2 Megapixel

Video

---

Video Formats:

H.265

H.264

MJPEG

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps

Lens

---

Lens Type: Fixed
Maximum Focal Length: 2.8 mm
Lens Included: Yes
Maximum Aperture: f/2

Exposure

---

Shortest Shutter Speed: 1/32000 Second
Longest Shutter Speed: 1/5 Second

Network & Communication

---

Connectivity Technology: Wired
Remote Management: Yes

Storage

---

Storage Type: Memory Card

Interfaces/Ports

---

Network (RJ-45): Yes

Power Description

---

Input Voltage: 12 V DC

Physical Characteristics

---

Mount Type:

Junction Box Mount

Conduit Mount

Corner Mount

Pole Mount

Form Factor: Bullet
Durability:

Water Resistant

Vandal Proof

Dust Resistant

Weather Proof

Height: 7.15" (181.50 mm)
Diameter: 3.59" (91.10 mm)
Weight (Approximate): 671 g

Environmental Conditions

---

Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 95%

Miscellaneous

---

Features:

Digital Wide Dynamic Range (D-WDR)

Motion Detection

3D Noise Reduction

SD Card Local Storage

Built-in Infrared Illuminator

Day/Night

Built-in Microphone

Indoor/Outdoor: Outdoor
Package Contents:

• IB9369-F2 Network Camera
• Quick Installation Guide
• Alignment Sticker
• Screw Pack
• Cable Gland

Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes

Warranty

---

Limited Warranty: 36 Month
