General Information

---

Manufacturer: IC INTRACOM
Manufacturer Part Number: 561686
Brand Name: Intellinet

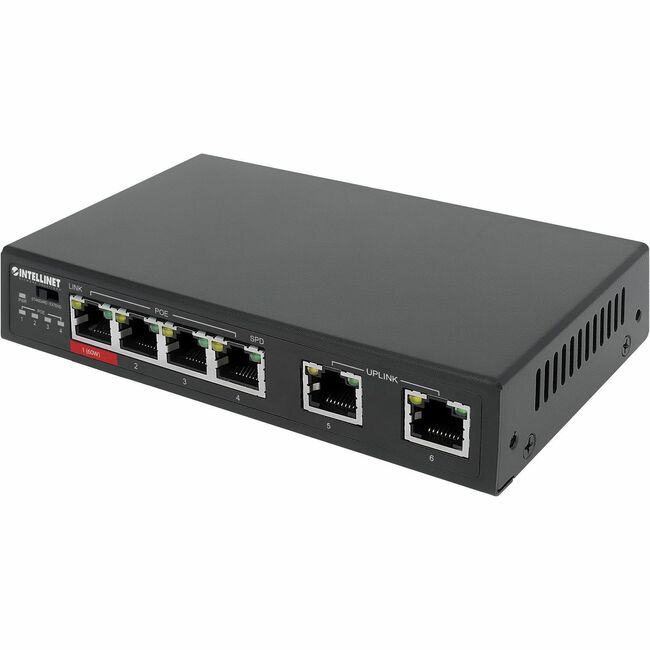

Product Name: 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE)
Marketing Information: A Fast Ethernet PoE Switch with extend mode and a lot of PoE power - ideal for IP camera installations
The 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode - to be activated at the flip of a switch - reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.
Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and nonPoE devices is supported, and thanks to its short-circuit, overload and highvoltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.

Features:

• Provides up to four PoE network devices with power and data
• Manual PoE extend mode (reduces network speed and extends PoE
• support to 250 m/820 ft.)
• PoE extend mode ideal for IP camera installations
• One high-power PSE PoE Port with power up to 60 W, three IEEE
• 802.3at/af PSE PoE Ports with up to 30 W each
• PoE power budget of 65 watts
• Two RJ45 Fast Ethernet uplink ports
• On/off switch to toggle VLAN
• Saves time and money by delivering data and power via existing
• network cables
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices
• (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and highvoltage protection
• Grounding point to protect equipment from external electrical surges
• 10/100 auto-sensing ports automatically detect optimal network speeds
• Switch fabric of 1.2 Gbps
• Supports 1k MAC address entries with Auto-Learning and Auto-Aging
• Store and forward switching architecture
• Supports IEEE 802.3x flow control on full duplex and backpressure on
• half duplex
• LEDs for power, link/activity and PoE
• Fanless design ideal for silent operation
• Three-year warranty

Product Type: Ethernet Switch

Technical Information

---

Features: Fanless

Interfaces/Ports

---

Total Number of Network Ports: 6
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details:

3 x Fast Ethernet PoE

1 x Ethernet Hi-PoE

2 x Fast Ethernet Network

Media & Performance

---

Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

Network & Communication

---

Layer Supported: 2
Networking Standards:

IEEE 802.3at

IEEE 802.3af

IEEE 802.3x

IEEE 802.3

IEEE 802.3u

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Input Voltage:

120 V AC

230 V AC

Power Source:

Power Adapter

AC

Physical Characteristics

---

Product Material: Metal
Height: 1.14" (29 mm)
Width: 6.02" (153 mm)
Depth: 3.43" (87 mm)
Weight (Approximate): 14.46 oz (410 g)

Miscellaneous

---

Package Contents:

• 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE)
• Power Adapter
• Instructions

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Philippines

Warranty

---

Limited Warranty: 3 Year
