Description:
General Information
Manufacturer: In Win Development, Inc
Manufacturer Part Number: BL040.FF300TB3F
Brand Name: In Win
Product Series: BL
Product Model: BL040

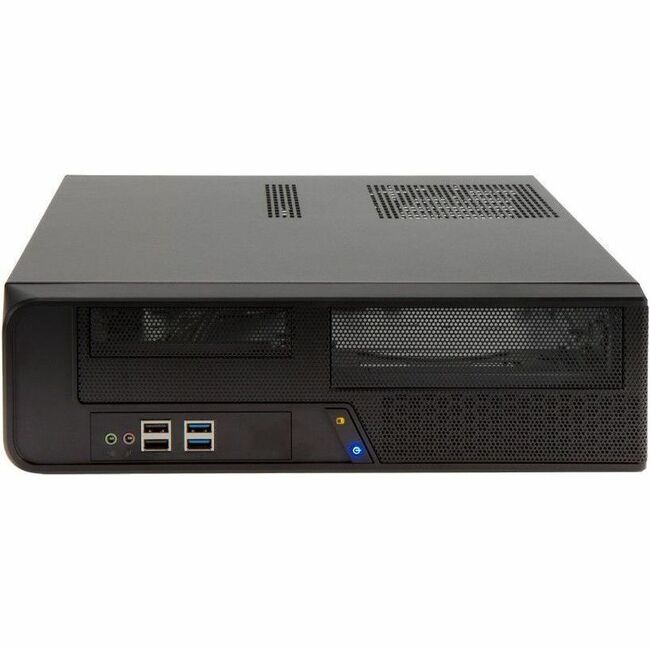

Product Name: Micro-ATX Chassis
Marketing Information:
Design Philosophy
A small 11.5L SFF chassis with optimal thermal and acoustic performance.
High Compatibility
It is compatible with standard desktop components, which makes the installation easier and provides a great expandability when needed.
Detachable Drive Bay Cage
For easy installation
Multi-Enjoyment
Designated Infrared Receiver position to support Media Center and optional internal amplifier.
Tool-Free
- Screwless Expansion Slots Clip
- Optional screwless design- ODD/FDD/HDD bays, expansion slots,and side cover clips for easy installation.
- Screwless ODD Bay Clips
- Screwless Top Cover Clips
- Screwless FDD/HDD Bays Clips
Excellent Thermal Solution
?PPCT
Optional the innovative partition plate cooling technology (PPCT) maximizes performance while providing a quiet and cooling environment.
?Cooling Fan
Built-in 80x80x25mm fan for better system cooling.
Product Type: Computer Case
Technical Information
Motherboard Supported: Micro ATXMini ITXNumber of Fans Supported: 1
Fan Size Supported: 3.15" (80 mm)
Features: Removable Air FilterIntrusion SwitchBays
Number of External 5.25" Bays: 1
Number of External 3.5" Bays: 1
Number of Internal 3.5" Bays: 2
Number of Internal 2.5" Bays: 1
I/O Expansions
Total Number of Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 4
USB Port Details: 2 x USB 3.02 x USB 2.04 x USB 2.0Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Description
Power Supply Installed: Yes
Power Supply Wattage: 300 W
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Steel
Cooler Type: Fan Cooler
Form Factor: Desktop
Maximum CPU Cooler Height: 2.83" (72 mm)
Maximum GPU Length: 7.68" (195 mm)
Height: 12.99" (330 mm)
Width: 3.78" (96 mm)
Depth: 16.14" (410 mm)
Weight (Approximate): 13 lb (5896.70 g)
Warranty
Limited Warranty: 2 Year
0 items
):
$132.95
