Description:
General Information
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE924
Brand Name: ATEN
Product Model: CE924

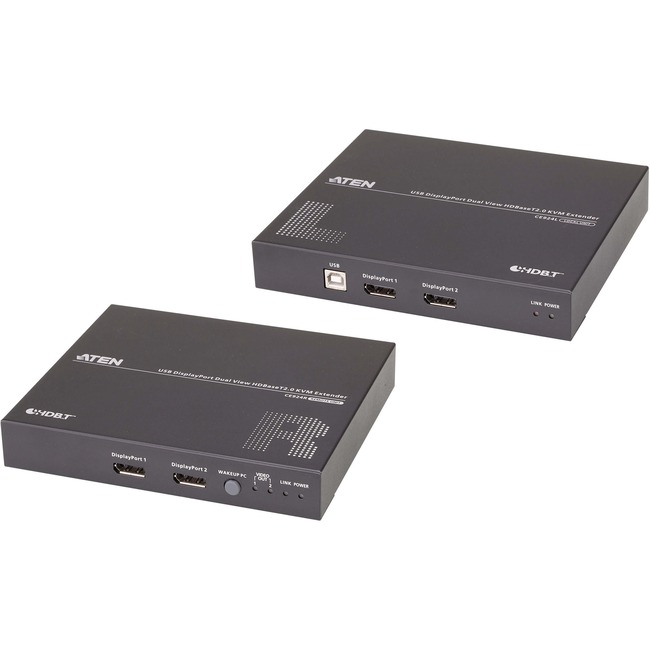

Product Name: USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
Marketing Information:
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Product Type: KVM Extender
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 2
Number of Local Users Supported: 2
Maximum Operating Distance: 328.08 ft (100000 mm)
Device Type: KVM Extender
Video
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 5
Physical Characteristics
Form Factor: Rack-mountable
Transmitter Height: 1.13" (28.80 mm)
Transmitter Width: 6.07" (154.10 mm)
Transmitter Depth: 6.86" (174.20 mm)
Receiver Height: 1.13" (28.80 mm)
Receiver Width: 6.13" (155.70 mm)
Receiver Depth: 6.86" (174.20 mm)
Transmitter Weight (Approximate): 1.81 lb (820 g)
Receiver Weight (Approximate): 1.87 lb (850 g)
Miscellaneous
Package Contents:
- 1 x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
- 2 x DisplayPort cables
- 1 x Pink audio jack cable set
- 1 x Green audio jack cable set
- 1 x USB Type-A to Type-B cable
- 2 x Power adapters
- 2 x Mounting kits
- 1 x User instructions
Environmentally Friendly: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)China Restriction of Hazardous Substances (China RoHS)Restriction of Hazardous Substances (RoHS)Country of Origin: Taiwan
0 items
):
$1,851.95
