Description:
General Information
Manufacturer: Vivotek, Inc
Manufacturer Part Number: CC9380-HV
Brand Name: Vivotek
Product Series: C
Product Model: CC9380-HV

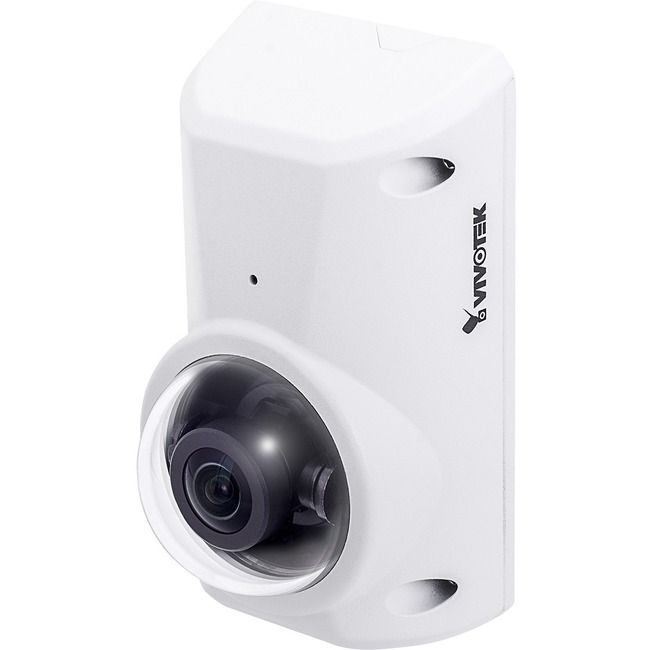

Product Name: Anti-Ligature Fisheye Network Camera
Marketing Information:
Overview
VIVOTEK's CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.
The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180° panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.
To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10- rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Display & Graphics
Image Sensor Type: CMOS
Color Supported: ColorMonochromeField of View: 180° (Horizontal) 120° (Vertical) 180° (Diagonal)
Effective Camera Resolution: 5 Megapixel
Video
Video Formats: H.265H.264MJPEGMaximum Video Resolution: 2560 x 1920
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 1.5 mm
Lens Included: Yes
Maximum Aperture: f/2.2
Exposure
Shortest Shutter Speed: 1/32000 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: White
Product Color: White
Mount Type: Bracket Mount
Form Factor: Fisheye
Durability: Dust ResistantWater ResistantWeather ProofVandal ProofHeight: 4.53" (115 mm)
Width: 2.56" (65 mm)
Depth: 2.33" (59.20 mm)
Weight (Approximate): 338 g
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)
Maximum Operating Humidity: 90%
Miscellaneous
Features:
Wide Dynamic RangeBuilt-in Microphone3D Noise ReductionDay/NightSD Card Local StorageDefogBack Light Compensation (BLC)Highlight Compensation (HLC)Privacy MaskingAudio CompressionHTTPS EncryptionMotion DetectionAudio DetectionPassword ProtectionTamper DetectionIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- Anti-Ligature Fisheye Network Camera
- Quick Installation Guide
- Mounting Bracket
- Screw Pack
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
Warranty
Limited Warranty: 4 Year
