Description:
General Information
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561419
Brand Name: Intellinet
Product Model: 561419

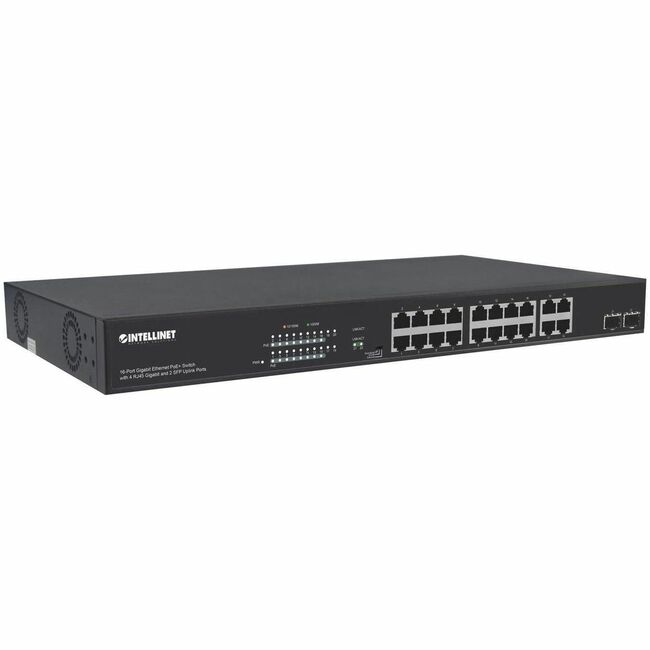

Product Name: 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports
Marketing Information:
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports passes both data and electrical power to a number of PoE-compatible devices via standard network cables. Equipped with 16 Gigabit Ethernet ports, the switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps.
Power over Ethernet 802.3at
This high-powered switch supports the IEEE 802.3at protocol and can inject up to 32 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported. Thanks to its built-in short-circuit-, overload- and high-voltage-protection functions, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.
Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, four RJ45 and two SFP uplink ports, the Intellinet Network Solutions switch offers plenty of performance for your computers, servers and other networking devices.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 20
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 20 x Gigabit Ethernet Network2 x Gigabit Ethernet Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X10/100/1000Base-T100Base-TXI/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3afIEEE 802.3atIEEE 802.3azIEEE 802.3xIEEE 802.3IEEE 802.3abIEEE 802.3uPower Description
PoE (RJ-45) Port: Yes
PoE Budget: 300 W
Input Voltage: 120 V AC230 V ACPower Source: Power SupplyACPower Consumption: 300 W
Physical Characteristics
Product Material: Metal
Form Factor: DesktopRack-mountableHeight: 1.73" (44 mm)
Width: 17.32" (440 mm)
Length: 9.06" (230 mm)
Weight (Approximate): 11.02 lb (5000 g)
Miscellaneous
Package Contents:
- 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports
- Power Cable
- User Guide
- Rubber Feet
- 19" Mounting Brackets
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
