Description:
General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-H973AX-8G-US
Brand Name: QNAP
Product Model: TS-H973AX-8G-US

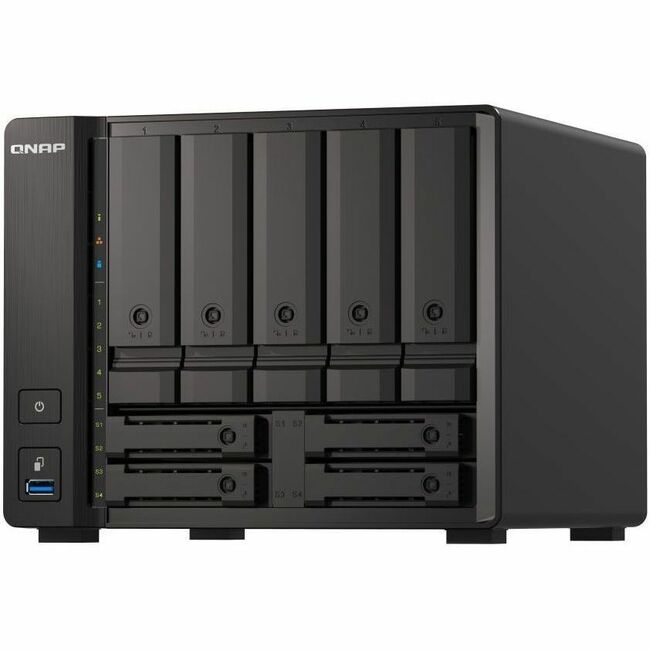

Product Name: TS-H973AX-8G-US SAN/NAS Storage System
Marketing Information:
Enhance business productivity using the quad-core 9-bay QuTS hero NAS that supports U.2 NVMe SSD and 10GbE/2.5GbE connectivity
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.
Optimized SSD performance and lifespan - Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.
10GbE/2.5GbE connectivity - One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
SaaS backup and recovery - Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).
Virtualization applications - Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
Cloud storage gateway - Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Flexible storage expansion - Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 9
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 9
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 5 GB
Processor & Chipset
Processor Manufacturer: AMD
Processor Type: Ryzen
Processor Model: V1500B
Processor Core: Quad-core (4 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 9
Number of 2.5" Bays: 4
Number of 2.5"/3.5" Bays: 5
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.2 Gen 2 Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Software
Operating System: QTS 5.2.0
Management & Protocols
Protocols: TCP/IPIPv4IPv6DHCPDDNSNATSTPHTTPHTTPSTLSWEBDAVSSLTelnetFTPCIFS/SMBAFPiSCSISMTPSMSCLDAPNFSv3NFSv4SFTPTFTPFXPMTPRSyncPPTPL2TPIPSecDLNAUPnPPower Description
Maximum Power Supply Wattage: 120 W
Physical Characteristics
Height: 6.95" (176.50 mm)
Width: 8.84" (224.60 mm)
Depth: 8.82" (224.10 mm)
Form Factor: Tower
Weight (Approximate): 9.57 lb (4340 g)
Miscellaneous
Package Contents:
- TS-H973AX-8G-US SAN/NAS Storage System
- 1 x 10GBASE-T Ethernet Cable
- 1 x Power Cord
- Power Adapter
- 24 x Flat Head Screws (for 3.5" HDD)
- 32 x Flat Head Screws (for 2.5" HDD)
- 2 x Drive Tray Keys
- Quick Installation Guide (QIG)
Country of Origin: Taiwan
Warranty
Limited Warranty: 3 Year
