General Information

---

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R4W43A
Brand Name: HPE
Product Series: 560
Product Model: AP-565

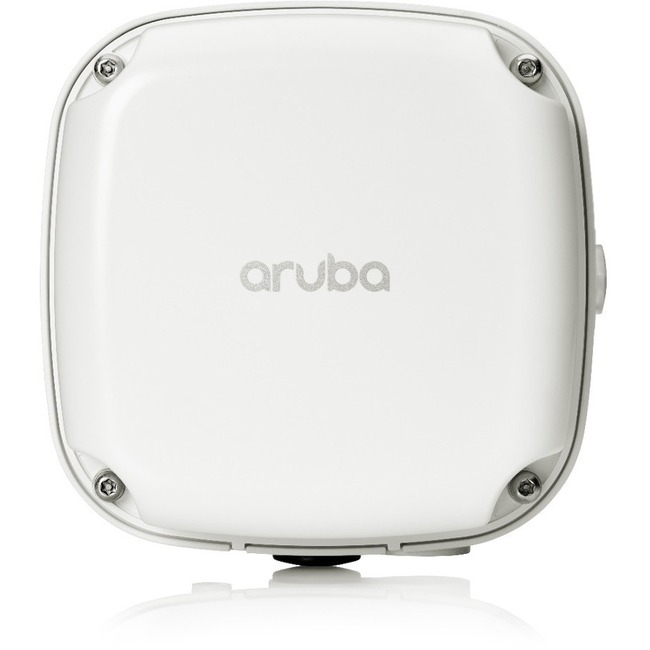

Product Name: AP-565 Wireless Access Point
Marketing Information: Aruba 560 Series Outdoor Access Points

Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments

Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.

The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Frequency Band:

2.40 GHz

5 GHz

Wireless Transmission Speed: 1.73 Gbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

WPA3

WPA

WPA2-MPSK

Interfaces/Ports

---

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
USB: Yes

Power Description

---

Power Consumption: 15.60 W

Physical Characteristics

---

Form Factor:

Wall Mountable

Ceiling Mountable

Pole-mountable

Height: 4.33" (110 mm)
Width: 6.50" (165 mm)
Depth: 6.50" (165 mm)
Weight (Approximate): 2.27 lb (1029.65 g)

Warranty

---

Limited Warranty: Lifetime
