General Information

---

Manufacturer: Fortinet, Inc
Manufacturer Part Number: FS-148F-FPOE
Brand Name: Fortinet
Product Line: FortiSwitch
Product Series: 100
Product Model: FS-148F-FPOE

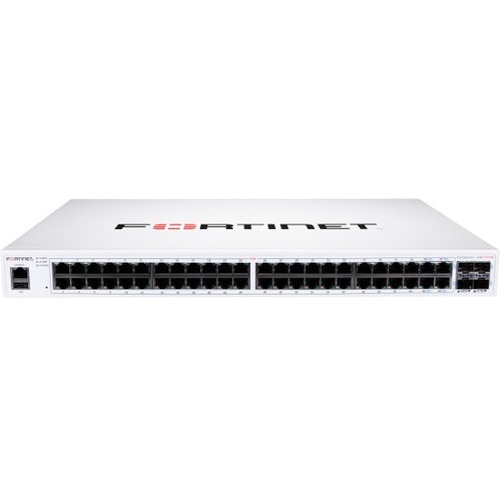

Product Name: FortiSwitch FS-148F-FPOE Ethernet Switch
Marketing Information: The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

Product Type: Ethernet Switch

Interfaces/Ports

---

Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

48 x Gigabit Ethernet PoE+

4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

---

Media Type Supported:

Optical Fiber

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

10 Gigabit Ethernet

Network Technology:

10/100/1000Base-T

10GBase-X

I/O Expansions

---

Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4

Network & Communication

---

Layer Supported: 2

Management & Protocols

---

Manageable: Yes

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 740 W
Power Source: Power Supply
Redundant Power Supply Supported: No
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Consumption: 895.70 W

Physical Characteristics

---

Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.32" (439.93 mm)
Depth: 12.20" (309.88 mm)
Weight (Approximate): 10.32 lb (4681.07 g)

Miscellaneous

---

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Country of Origin: Taiwan

Warranty

---

Limited Warranty: Lifetime
