General Information

---

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: AP32-WW
Brand Name: Juniper
Product Model: AP32

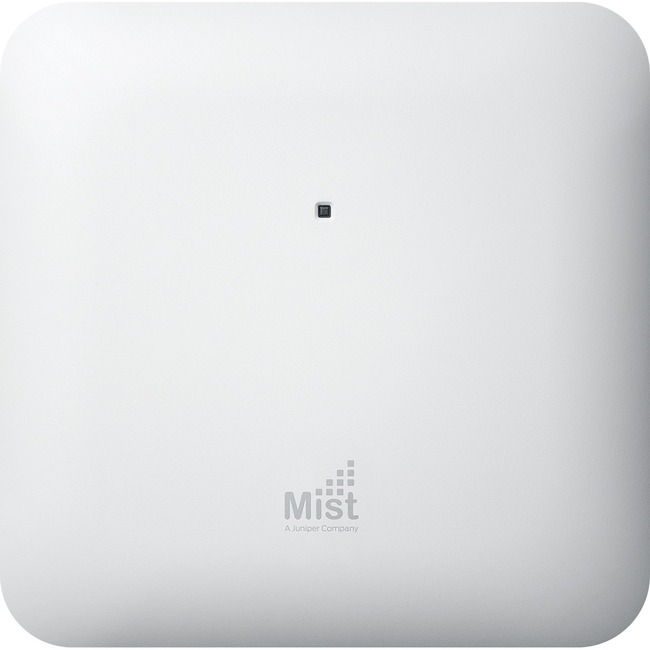

Product Name: AP32 Access Point
Marketing Information: The AP32 series automates network operations and boosts Wi-Fi performance. It delivers an aggregate data rate of up to 3 Gbps concurrently on 2.4GHz and 5GHz radios. Managed by the Juniper Mist™ Cloud Architecture, the AP32 series delivers unprecedented user experiences at a lower cost for retail, warehouse, school, clinic, and home office environments.

Juniper AI-Driven Network

Juniper brings true innovation to the wireless space with the world's first AI-driven wireless LAN (WLAN).

The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable with unprecedented visibility into the user experience through customizable service level expectation (SLE) metrics. Time-consuming manual IT tasks are replaced with AI-driven proactive automation and self-healing, lowering Wi-Fi operational costs and saving substantial time and money.

All operations are managed via our open and programmable microservices architecture, which delivers maximum scalability and performance while also bringing DevOps agility to wireless networking and location services.

The Juniper Mist Cloud Architecture

Mist AI leverages a cloud-native microservices architecture to bring unparalleled agility, scale, and resiliency to your network. It leverages an AI engine to lower OpEx and deliver unprecedented insight by using data science to analyze large amounts of rich metadata collected from Juniper Access Points.

Juniper Access Point Family

The Juniper enterprise-grade access point family consists of:

• AP45 and AP34 Series which support Wi-Fi 6E, 802.11ax (Wi-Fi 6), and Bluetooth LE
• AP43, AP12, AP32, AP33, and AP63 Series, which support 802.11ax (Wi-Fi 6), Bluetooth LE, and IoT
• AP21, AP41, and AP61 Series, which support 802.11ac Wave 2, Bluetooth LE, and IoT
• BT11, which supports Bluetooth LE

These access points are all built on a real-time microservices platform and are managed by the Juniper Mist cloud.
Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: IEEE 802.11ax
Bluetooth Standard: Bluetooth 5
Network Band: Dual Band
Frequency Band:

2.40 GHz

5 GHz

Total Number of Antennas: 6
Number of Internal Antennas: 6
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 3 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes

Interfaces/Ports

---

Ethernet Technology:

Gigabit Ethernet

2.5 Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
USB: Yes
USB Standard: USB 2.0

Physical Characteristics

---

Form Factor: T-bar Mount
Antenna Form Factor: Internal/External
Height: 7.95" (202 mm)
Width: 7.95" (202 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 1.83 lb (830 g)
