General Information

---

Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CL3116NX
Brand Name: ATEN
Product Series: SOHO
Product Model: CL3116
Product Name: SOHO CL3116 LCD Rack Console

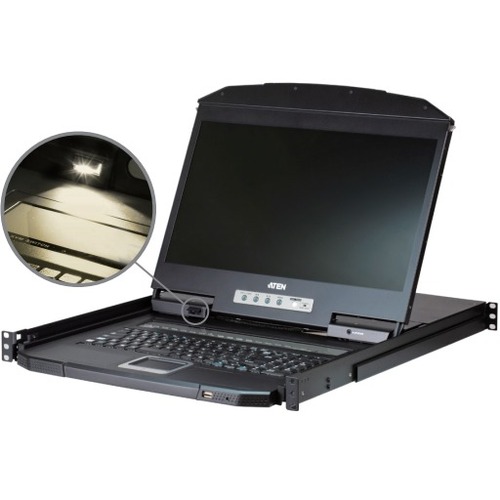

Marketing Information: The ATEN CL3108/CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rackmounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3108/CL3116 can control up to 8/16 computers; when 8/16 additional KVM switches are cascaded, a single CL3108/CL3116 LCD KVM Switch can control up to 128/256 computers. To achieve greater operational efficiency, the CL3108/CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108/CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108/CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108/CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry
Product Type: LCD Rack Console

Technical Information

---

KVM Switch: Yes
Number of Computers Supported: 256

Display & Graphics

---

Screen Size: 18.5" (469.90 mm)
Display Screen Type: LCD
Screen Mode: HD
Screen Resolution: 1366 x 768

Input Devices

---

Keyboard: Yes
Pointing Device Type: TouchPad

Interfaces/Ports

---

PS/2 Port: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 1
Number of VGA Ports: 16

Power Description

---

Input Voltage:

120 V AC

230 V AC

Input Voltage Range: 100V AC to 240V AC

Physical Characteristics

---

Product Material:

Metal

Plastic

Rack Height: 1U
Height: 1.69" (42.80 mm)
Width: 18.92" (480.60 mm)
Depth: 24.87" (631.70 mm)
Weight (Approximate): 23.37 lb (10600 g)

Warranty

---

Limited Warranty: 3 Year
