Description:
General Information
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: TP-789R
Brand Name: Kramer
Product Line: DigiTOOLS
Product Model: TP-789R

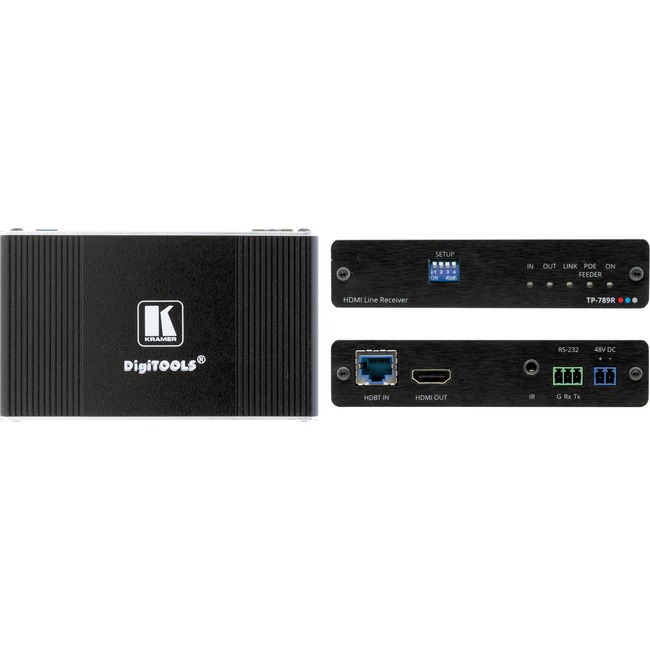

Product Name: DigiTOOLS TP-789R Video Extender Receiver
Marketing Information:
TP-789R is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals and two-way powering over twisted pair. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto-sensed by the receiver.
- High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals and powering over twisted-pair copper infrastructures. TP-789R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate, or accepts power from a remote PoE provider such as a PoE matrix.
- HDMI Signal Extension - Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Easy Installation - Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
APPLICATIONS
- Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft (70000 mm)
Video
Graphics Modes: 4K
Interfaces/Ports
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Physical Characteristics
Receiver Height: 0.96" (24.38 mm)
Receiver Width: 4.72" (119.89 mm)
Receiver Depth: 2.81" (71.37 mm)
Form Factor: Wall PlateRack-mountableReceiver Weight (Approximate): 7.05 oz (200 g)
Miscellaneous
Package Contents:
- DigiTOOLS TP-789R Video Extender Receiver
- Power Adapter
- Bracket Set
Environmentally Friendly: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)
