General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMTL750RM2UC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SMTL750RM2UC

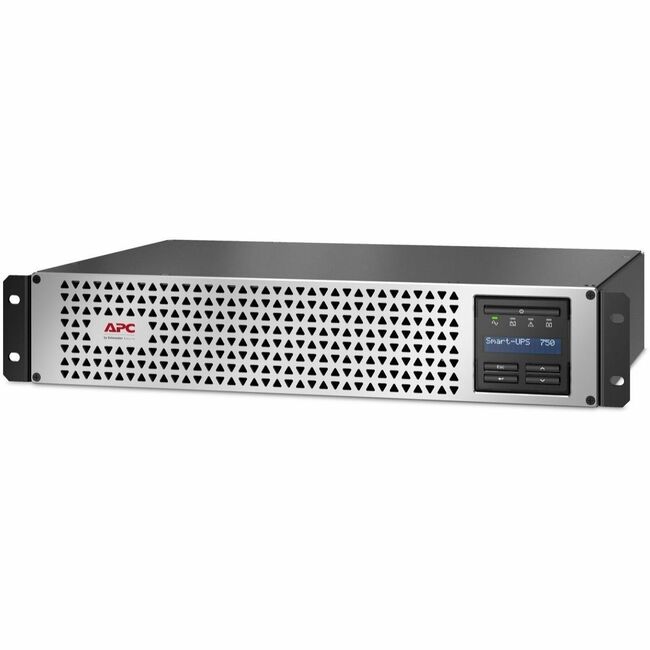

Product Name: Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Overload Protection: Yes
Cord Length: 8 ft (2.44 m)
Transfer Time: 10 ms
Application/Usage:

Server

POS Terminal

Network Device

Switch

Router

Network Hub

Security System

Communication System

Power Description

---

Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

---

Network Management: SmartConnect
Alarm:

On Battery

Low Battery

Configurable Delay

Controls/Indicators

---

Status Indicators:

LED status indicators: Quickly understand unit and power status with visual indicators.

Interfaces/Ports

---

Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

---

Battery Chemistry: Lithium Ion (Li-Ion)
Backup/Run Time (Full Load): 5.70 Minute
Backup/Run Time (Half Load): 13.80 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 25000 ft (7620000 mm)
Storage Temperature: -40°F (-40°C) - 95°F (35°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 41 dB(A)
Thermal Dissipation: 70 BTU/h

Physical Characteristics

---

Product Color:

Black

Silver

Height: 3.39" (86 mm)
Width: 17.24" (438 mm)
Depth: 12.52" (318 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 34 lb (15422.14 g)

Miscellaneous

---

Package Contents:

Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Software Included: Powerchute Serial Edition
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
Additional Warranty Information: 5 year repair or replace
