General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SCL500RM1UNC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

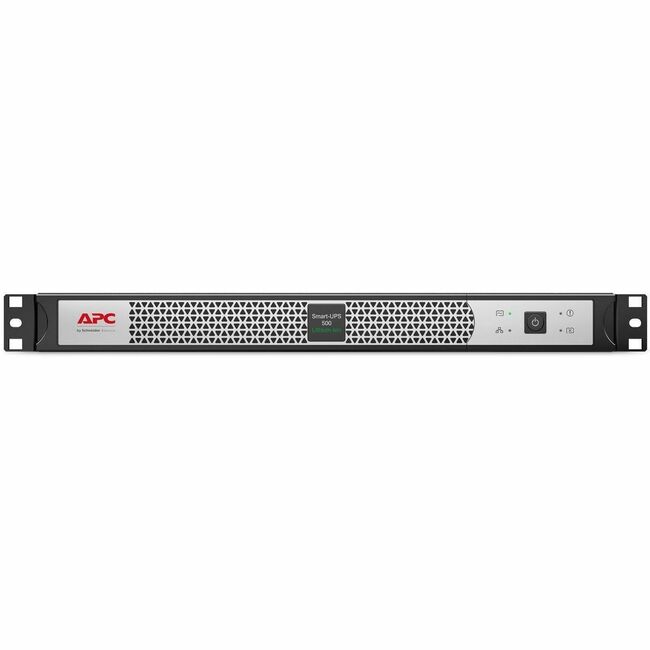

Product Name: Smart-UPS 500VA Rack-mountable UPS
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 4 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Overload Protection: Yes
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
Application/Usage:

Server

POS Terminal

Router

Switch

Network Hub

IT Equipment

Network Device

Business

Storage System

Critical System

Security System

Communication System

Power Description

---

Load Capacity (VA): 500 VA
Load Capacity (Watt): 400 W
Input Voltage: 120 V
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

---

Alarm:

On Battery

Low Battery

Configurable Delay

Controls/Indicators

---

Status Indicators:

LED Status Display:

• On Battery
• On Line

Interfaces/Ports

---

Serial Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

---

Battery Chemistry: Lithium Ion (Li-Ion)
Battery Energy: 108 kJ
Backup/Run Time (Full Load): 2.70 Minute
Backup/Run Time (Half Load): 6.30 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 6561 ft (1999792.80 mm)
Maximum Storage Elevation: 49212 ft (14999817.60 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)

Physical Characteristics

---

Product Color:

Black

Silver

Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.13" (232 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 9.30 lb (4218.41 g)

Miscellaneous

---

Package Contents:

Smart-UPS 500VA Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

USB cable

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
Additional Warranty Information: 5 year repair or replace
