Description:
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9200L-24T-4G-E
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9200
Product Model: C9200L-24T-4G

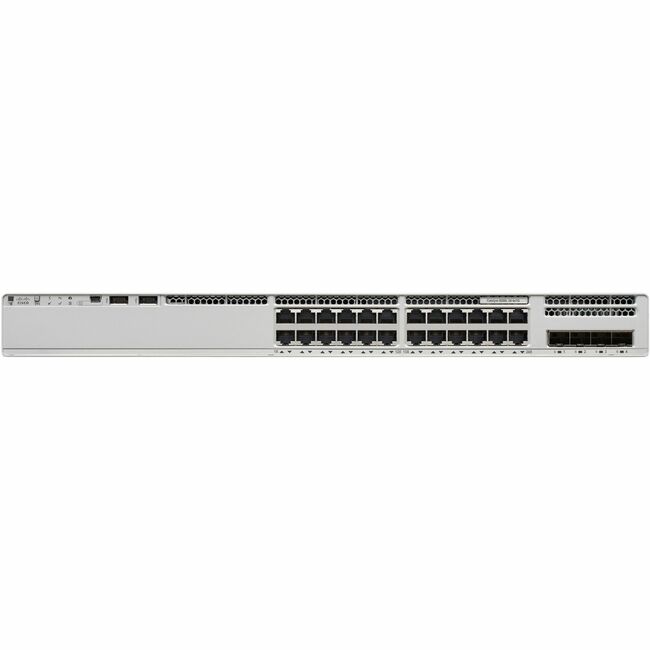

Product Name: Catalyst C9200L-24T-4G Ethernet Switch
Marketing Information:
Extend intent-based networking everywhere
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Packaged Quantity: 1
Product Type: Ethernet Switch
Technical Information
Features: Plug and PlayAccess Control ListZero-Touch Provisioning (ZTP)Energy EfficientRemote Monitoring (RMON)Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 24 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port4 x Gigabit Ethernet SFP Uplink Port1 x RJ-45 Console Port1 x RJ-45 Management Port1 x Network Stack DeviceMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T1000Base-XMaximum Data Transfer Rate: 128 MB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.1sIEEE 802.1wIEEE 802.1pIEEE 802.1xIEEE 802.3adIEEE 802.1QIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.1aeIEEE 802.1DIEEE 802.3bzIEEE 802.3anManagement & Protocols
Manageable: Yes
Power Description
Input Voltage: 120 V AC230 V ACPower Source: Power SupplyACRedundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Power Consumption: 125 W
Plug/Connector Type: IEC 320-C16
Physical Characteristics
Product Color: Gray
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.50" (444.50 mm)
Depth: 11.30" (287.02 mm)
Weight (Approximate): 9.59 lb (4350 g)
Miscellaneous
Energy Star: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 5Waste Electrical and Electronic Equipment Directive (WEEE)TCO Certified: No
Warranty
Limited Warranty: Lifetime
