Description:
General Information
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CS1942DP
Brand Name: ATEN
Product Model: CS1942DP
Product Name: 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
Marketing Information:
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
More from the Manufacturer
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 2
Number of Local Users Supported: 1
Video
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 6
Number of DisplayPorts: 6
Power Description
Input Voltage Range: 12V DC
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 6.17" (156.72 mm)
Depth: 13.19" (335.03 mm)
Weight (Approximate): 1.54 kg
Miscellaneous

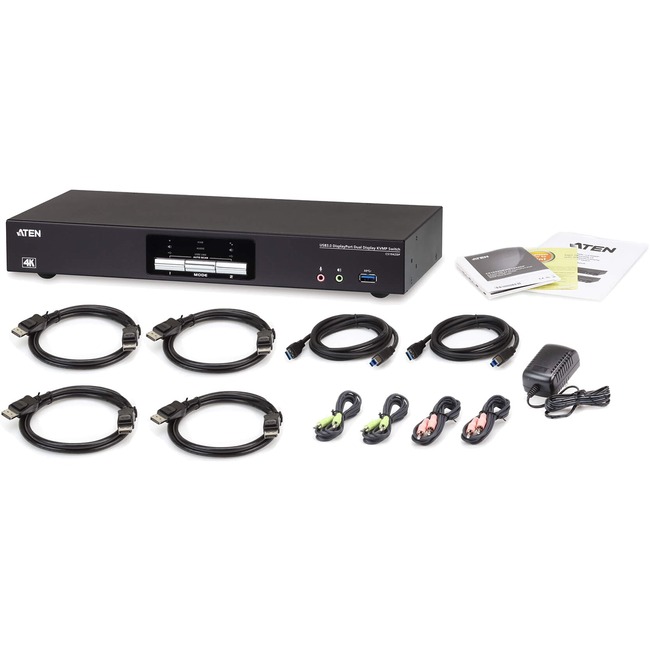

Package Contents:
- 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
- 4 x DisplayPort 1.2 Cables
- 2 x USB 3.0 Cables
- 4 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
