General Information

---

Manufacturer: Eaton Corporation
Manufacturer Part Number: ECO1500LCD
Brand Name: Tripp Lite series
Product Series: ECO
Product Model: ECO1500LCD

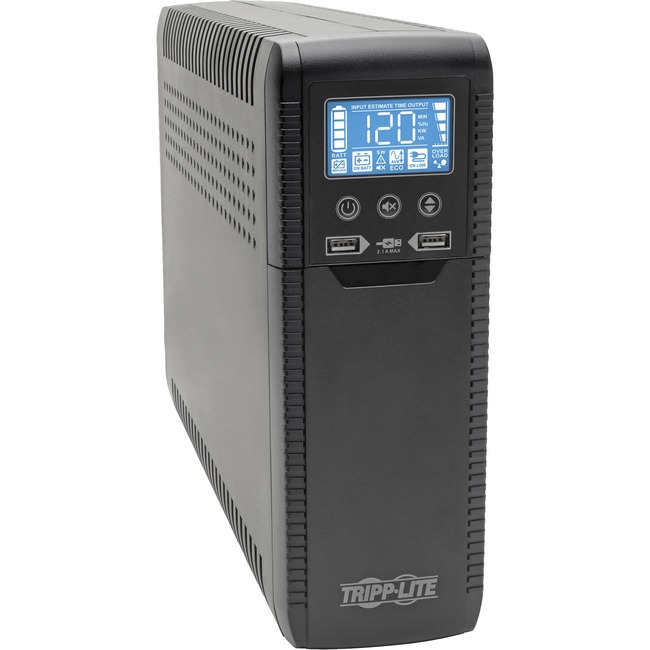

Product Name: ECO1500LCD 1440VA Tower UPS
Marketing Information: Line-interactive UPS provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. ECO power-saving option turns off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. Automatic voltage regulation (AVR) corrects low-voltage conditions to protect your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. Built-in audible alarm sounds to warn you of a low battery or overload conditions.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 5
Dataline Protection:

RJ-11

RJ-45

Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:

Desktop Computer

Home Theater

Router

Printer

Workstation

Power Description

---

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 900 W
Input Voltage: 120 V AC
Output Voltage:

110 V AC

115 V AC

120 V AC

Output Frequency: 60 Hz
Waveform Type: Sine Wave

Management

---

Alarm:

Low Battery

Fault

Overload

Replace Battery

Battery Information

---

DC System Voltage: 24 V DC
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 7 Hour

Physical Characteristics

---

Height: 11" (279.40 mm)
Width: 3.90" (99.06 mm)
Depth: 16.14" (409.96 mm)
Form Factor: Tower
Weight (Approximate): 26.44 lb (11992.98 g)

Miscellaneous

---

Package Contents:

• ECO1500LCD 1440VA Tower UPS
• USB Cable
• Owner's Manual

Energy Star: Yes
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

3 year limited warranty
