Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BN1500M2-CA
Brand Name: Schneider Electric
Product Line: Back-UPS Pro

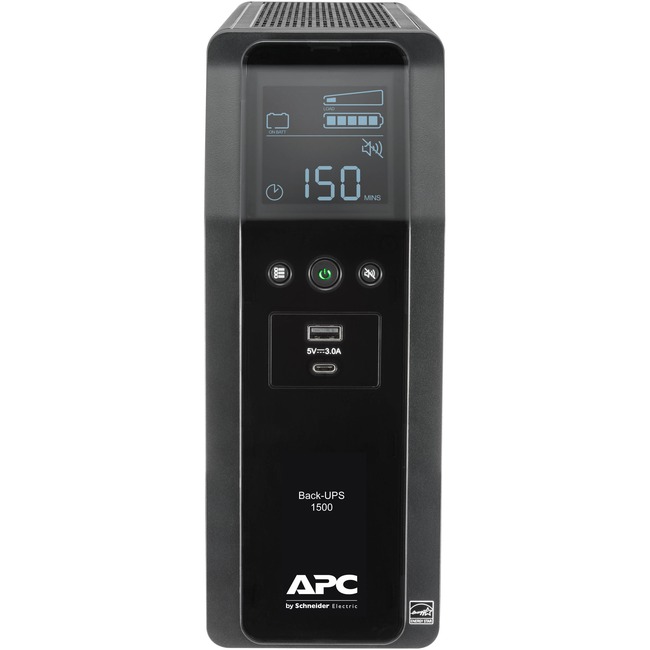

Product Name: Back-UPS Pro 1.5KVA Tower UPS
Marketing Information:
It offers 1500VA and 900W of power and nominal input voltage of 120V. It includes ten NEMA outlets out of which six outlets for battery backup and four outlets for surge protection. The UPS has a lead-acid battery with a recharge time of 16 hours. It features an LCD display for real-time status updates.
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 5
Dataline Protection: RJ-45CoaxTransfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Application/Usage: ComputerElectronicRouterModemStorage DeviceGaming ConsoleHomeBusinessNetworkEquipmentCritical Low-power DevicePower Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 900 W
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 139 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 1080 J
Management
Alarm: On BatteryLow BatteryOverloadControls/Indicators
Status Indicators:
LCD Graphics Display:
- Modes of operation
- System Parameters
- Alarms
Interfaces/Ports
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1
Battery Characteristics: Maintenance-free, Sealed, Leak-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3.10 Minute
Backup/Run Time (Half Load): 11.40 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 16 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 104°F (40°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
Height: 10.24" (260 mm)
Width: 3.94" (100 mm)
Depth: 14.49" (368 mm)
Form Factor: Tower
Weight (Approximate): 25.13 lb (11400 g)
Miscellaneous
Package Contents:
- Back-UPS Pro 1.5KVA Tower UPS
- Coaxial Cable
- USB Cable
- User Manual
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 3 Year
