General Information

---

Manufacturer: Eaton Corporation
Manufacturer Part Number: U442-DOCK4-S
Brand Name: Tripp Lite series
Product Model: U442-DOCK4-S

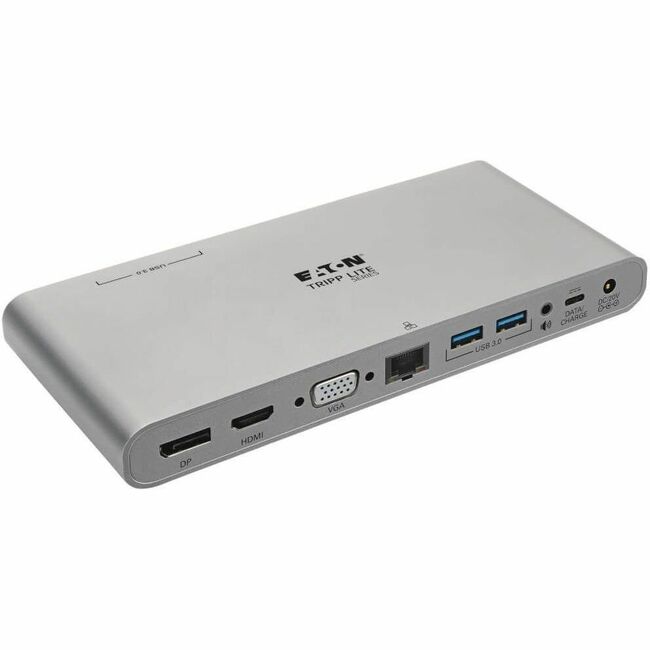

Product Name: U442-DOCK4-S Docking Station
Marketing Information: This docking station with power expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD charging-compliant mobile device, connecting to a Gigabit Ethernet network and more. With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort TV, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (sold separately). The HDMI and DisplayPort ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

---

Connectivity Technology: Wired
Device Supported:

Notebook

Tablet PC

Desktop PC

Smartphone

Interfaces/Ports

---

Host Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
Network (RJ-45): Yes
VGA: Yes
DisplayPort: Yes
Microphone: Yes
HDMI: Yes
Thunderbolt: Yes

Power Description

---

Maximum Power Supply Wattage: 100 W

Physical Characteristics

---

Height: 0.87" (22.10 mm)
Width: 7.80" (198.12 mm)
Depth: 3.30" (83.82 mm)
Weight (Approximate): 15.17 oz (430 g)

Miscellaneous

---

Package Contents:

• U442-DOCK4-S Docking Station
• USB-C cable (M/M), 1 ft.
• External power supply (Input: 100-240V, 50/60 Hz, 1.8A; Max Output: 20V 3.6A)
• Owner's manual

Compatibility:

Apple Notebook:

• MacBook

Google Notebook:

• Chromebook

Country of Origin: Vietnam
Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Restriction of Hazardous Substances (RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information:

3 year limited warranty
