General Information

---

Manufacturer: Microchip Technology Inc.
Manufacturer Part Number: 2294900-R
Brand Name: Microchip Adaptec
Product Line: SmartRAID
Product Series: 3100
Product Model: ASR-3151-4i

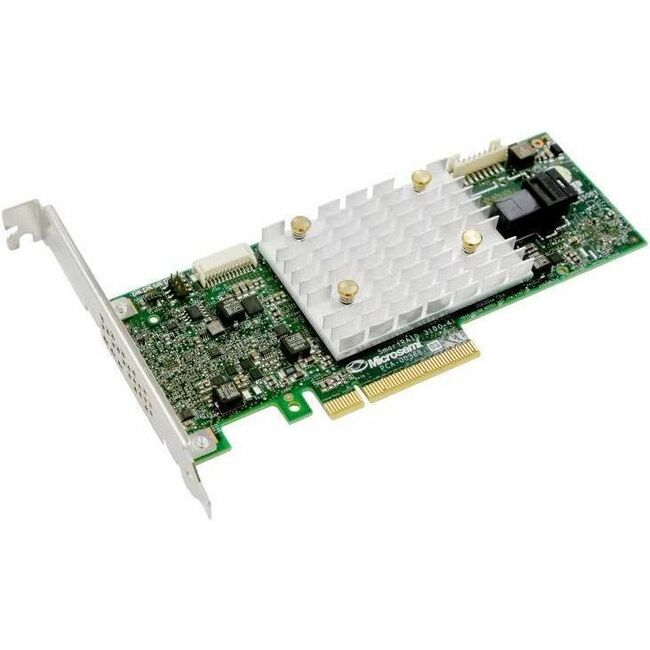

Product Name: SmartRAID 3151-4i Single
Marketing Information: The 12 Gbps Adaptec SmartRAID 3154-8i8e RAID adapter has 4 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Microchip's industry leading Smart Storage stack delivers maximum reliability and best-in-class performance that all RAID levels come to expect, plus unique features like Mixed Mode support (RAID and HBA devices can be used simultaneously), adapter power management (reduces power consumption up to 30 percent), and Advanced Data Management (ADM) features that allow data migration from existing RAID arrays.

SmartRAID 3151-4i adapters include maxCache 4.0, and when coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS as well as acceleration and latency optimization through caching. The SmartRAID 3151-4i adapters also integrate flash-based cache backup to enable instant cache protection. The tethered ASCM-35F capacitor module ensures data is safely backed up to Flash memory in case of power loss.

With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line.

SmartRAID 3151-4i RAID adapter is ideal solutions for high performance enterprise servers that require maximum connectivity and security.
Product Type: SAS Controller

Technical Information

---

Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels:

0

1

5

6

50

60

10 ADM

1 ADM

10

Data Backup Type: Flash Backed Cache

Memory

---

Cache Memory: 1 GB

Interfaces/Ports

---

Total Number of SAS Ports: 4
Number of SAS Ports (Internal): 4
SAS Connector Details: 1 x SFF-8643

Physical Characteristics

---

Form Factor: Plug-in Card
Height: 2.54" (64.39 mm)
Length: 6.60" (167.64 mm)
Weight (Approximate): 1.10 lb (500 g)

Miscellaneous

---

Package Contents:

• SmartRAID 3151-4i Single
• Additional Low Profile Vented Bracket

Platform Supported:

PC

Linux

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Singapore

Warranty

---

Limited Warranty: 3 Year
