General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT3000RM2UNC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

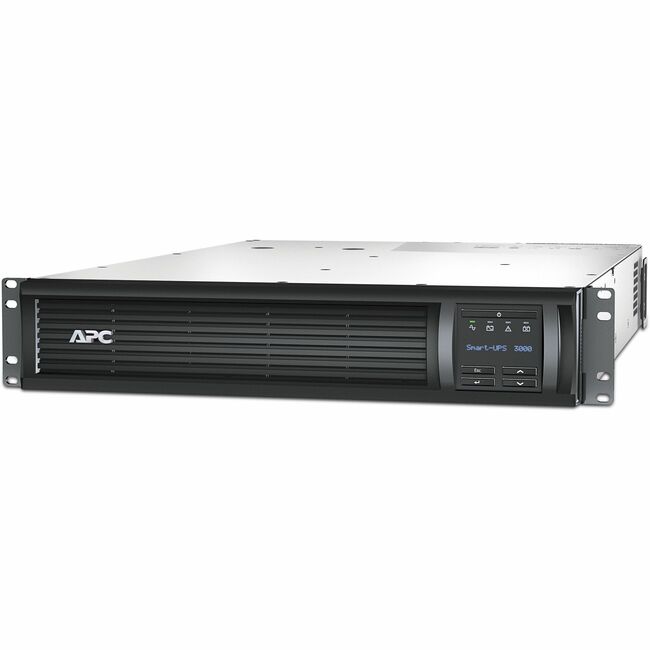

Product Name: Smart-UPS 3000VA LCD RM 2U 120V with Network Card
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P inputs, 2 NEMA 5-20R and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

Product Type: Line-interactive UPS

Technical Information

---

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA L5-30P
Receptacle Detail:

2 x NEMA 5-20R

6 x NEMA 5-15R

Number of Battery & Surge Outlets: 8
Cord Length: 8 ft (2.44 m)
Transfer Time: 8 ms

Power Description

---

Load Capacity (VA): 2.88 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 120 V
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 459 J

Battery Information

---

Battery Chemistry: Lead Acid
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

---

Product Color: Black
Height: 3.39" (86 mm)
Width: 18.90" (480.06 mm)
Depth: 26.89" (683 mm)
Rack Height: 2U
Form Factor: Tower
Weight (Approximate): 97.62 lb (44279.69 g)

Miscellaneous

---

Package Contents:

Smart-UPS 3000VA LCD RM 2U 120V with Network Card

CD with software

Documentation CD

Installation guide

Rack mounting hardware

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
